DC-DC Step-up Boost Converter Constant Current Power Supply Module
DC-DC Boost Converter Module 120W / 150W / 250W / 9A 300W / 300W 20A / 400W 15A / 600W 10A Step-Up Power Supply
A DC-DC boost converter module is an electronic device designed to increase the voltage level of a DC power source efficiently. These modules are typically used in various applications where a higher output voltage is required from a lower input voltage source. They come in different configurations and form factors, often encapsulated in a housing for protection and easy integration into electronic circuits.

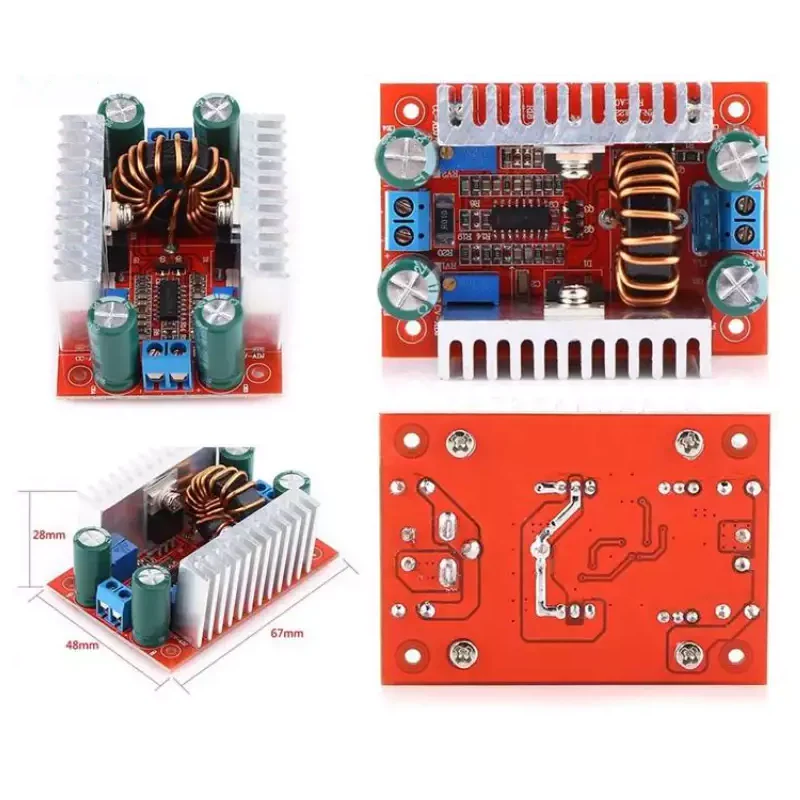

400W 15A Step-up Boost Converter LED Driver 8.5-50V to 10-60V Voltage Constant Current Module:
- Module name: 400W boost constant current module
- Module properties: non-isolated step-up module (BOOST)
- Input voltage: DC8.5V-50V
- Input current: 15A (MAX) exceeds 8A please enhance heat dissipation
- Quiescent current: 10mA (12V liter 20V, the output voltage, the higher the current will increase too quiet)
- Output voltage: 10-60V continuously adjustable
- Constant] range: 0.2-12AĀ
- Temperature: -40 to + 85 degrees (ambient temperature is too high, please enhance heat dissipation)Ā
- Operating frequency: 150KHz
- Conversion efficiency: up to 96%
- Overcurrent protection: yes
- Input reverse polarity protection: no
- Installation: 4 2.55mm screw holes
- Connection method: Connection Output
- Module size: 67mm X 48mm X 28mm (LxWxH)
- Single module: 60 g
150W DC-DC Step-Up Boost Converter 10-32V to 12-35V 6A Adjustable Power Supply Module
- Input voltage: 10-32V
- Output voltage: 12-35V (adjustable)
- Output Current: 10A (MAX)
- Input Current: 16A (MAX) (Please enhance heat dissipation if more than 10A)
- The non-isolated step-up power conversion module
- Onboard LED illuminates when the voltage is applied to the module
- EquipsĀ Multi-turn Potentiometer.
