3S/4S/5S 65W 100W 4/6 Port Two Way Fast Charging Power Bank Module Circuit Board

GXJA0707 - 6Port  GABA0026 - 4Port Charging Modules

GXJA0707 - With Apple Lightning Connector

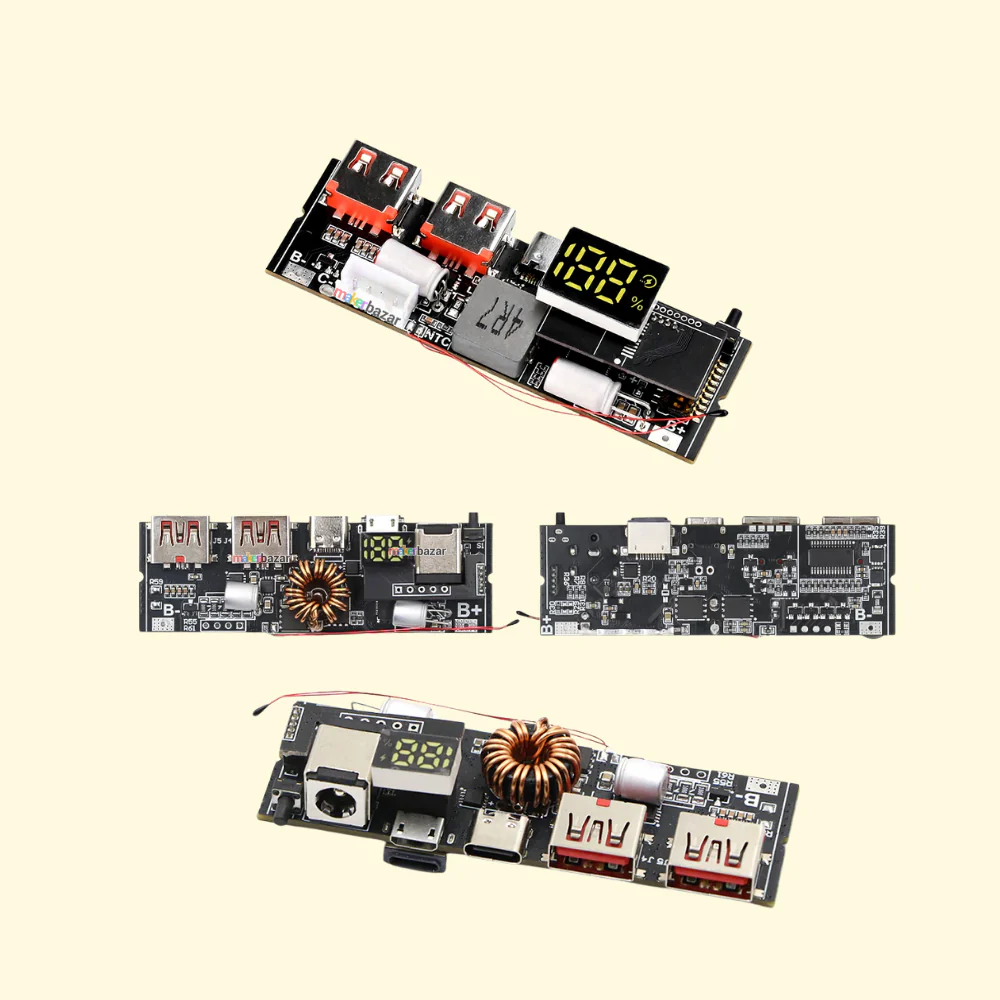

Upgrade your power setup with this versatile and efficient power bank module. Featuring a multi-interface design with 6 ports, it caters to a wide range of devices with high precision and reliability. Its digital screen display allows for easy monitoring of power usage.

• 3S 65W GXJA0707-001
• 4S 100W GXJA0707-002
• 5S 100W GXJA0707-003

Product Information:

• High Efficiency & Precision: Ensures reliable performance with a maximum output power of 65W/100W.
• Versatile Ports: Includes 2 Type-C ports and 2 Type-A ports supporting multiple fast-charging protocols.
• Wide Compatibility: Supports various input and output voltages and fast-charging standards, including PPS, PD3.0, QC3.0, AFC, and more.
• Portable Design: Compact size (72x27x6mm) makes it easy to integrate into various setups.
• Digital Display: Real-time power display for convenience.

Technical Specifications:

• Battery Type: Lithium polymer
• Output Power: 65W/100W (Type-C2 supports up to 60W)
• Ports: Type-C1, Type-C2 (fast charging input/output), Type-A1, Type-A2 (fast charging output)
• Input Support: 5V/9V/12V/15V/20V
• PPS Output: 3.3V-21V/3A
• PD3.0 Output: 5V3A/9V3A/12V3A/15V3A/20V5A
• QC2.0/3.0 Output: Various voltages and currents
• AFC/FCP/VOOC/SCP Support: Different output settings as specified

GABA0026 - Without Apple Lightning Connector

Upgrade your power setup with this versatile and efficient power bank module. Featuring a multi-interface design with 4 ports, it caters to a wide range of devices with high precision and reliability. Its digital screen display allows for easy monitoring of power usage.

• 3S 65W GABA0026-001
• 4S 100W GABA0026-002
• 5S 100W GABA0026-003

Key Features

• Wide Fast-Charging Protocol Support
  Fully compatible with PD3.1, PPS, QC2.0/QC3.0, UFCS, AFC, FCP, SCP, VOOC, and more—charge most smartphones, tablets, and laptops effortlessly.
• PD Two-Way Fast Charging
  Supports bidirectional PD fast charging, enabling both ultra-fast output and rapid self-charging of the battery.
• MPPT Solar Charging Support
  Built-in MPPT function allows direct connection to solar panels for efficient renewable charging.
• Intelligent Voltage Boosting
  Automatic PWM & PSM mode switching ensures efficient voltage boosting without damaging connected devices.
• Multiple Protection Mechanisms
  Integrated over-current, over-voltage, short-circuit, and over-temperature protection for safe and stable operation.
• Ultra-Low Ripple Output
  Large solid capacitors provide clean power output with Type-C ripple as low as 6–9mV, protecting sensitive electronics.
• DIY-Friendly Design

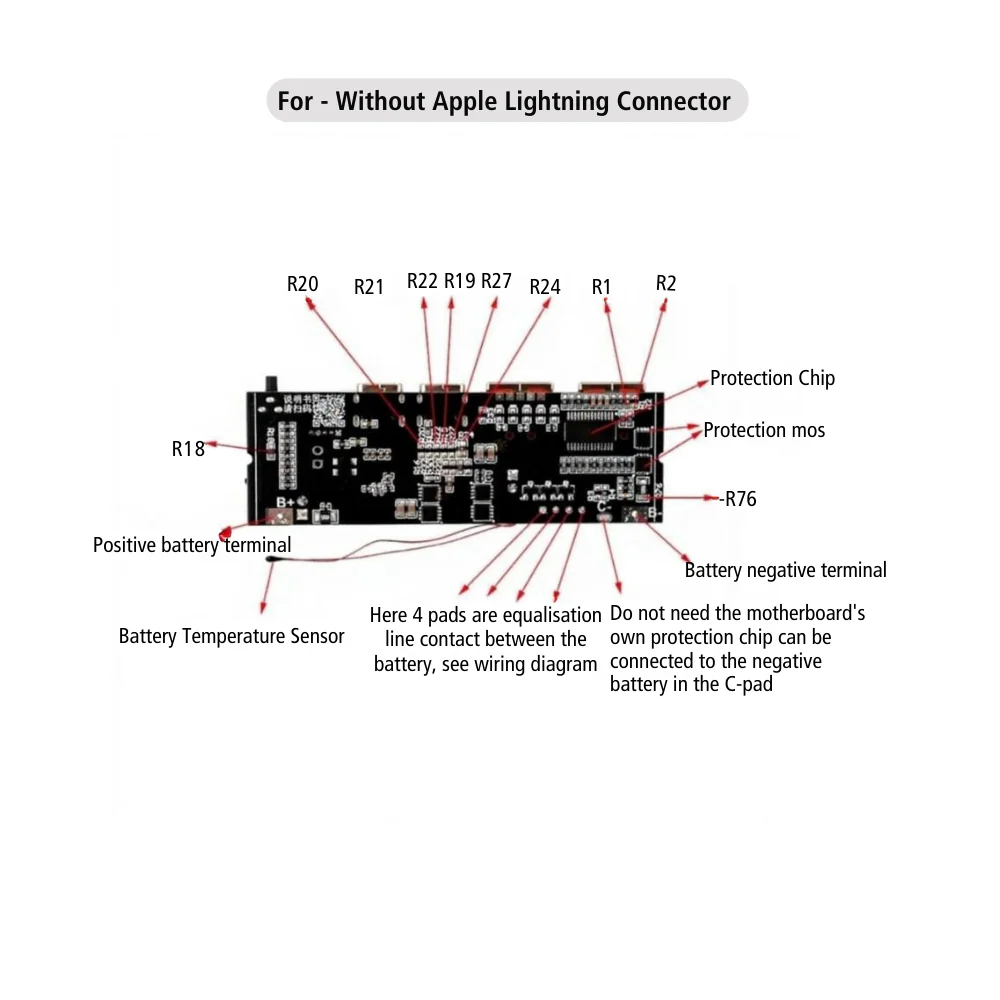

  Clear silkscreen labeling and circuit layout make it easy to assemble, debug, and customize your own power bank projects.

Technical Specifications

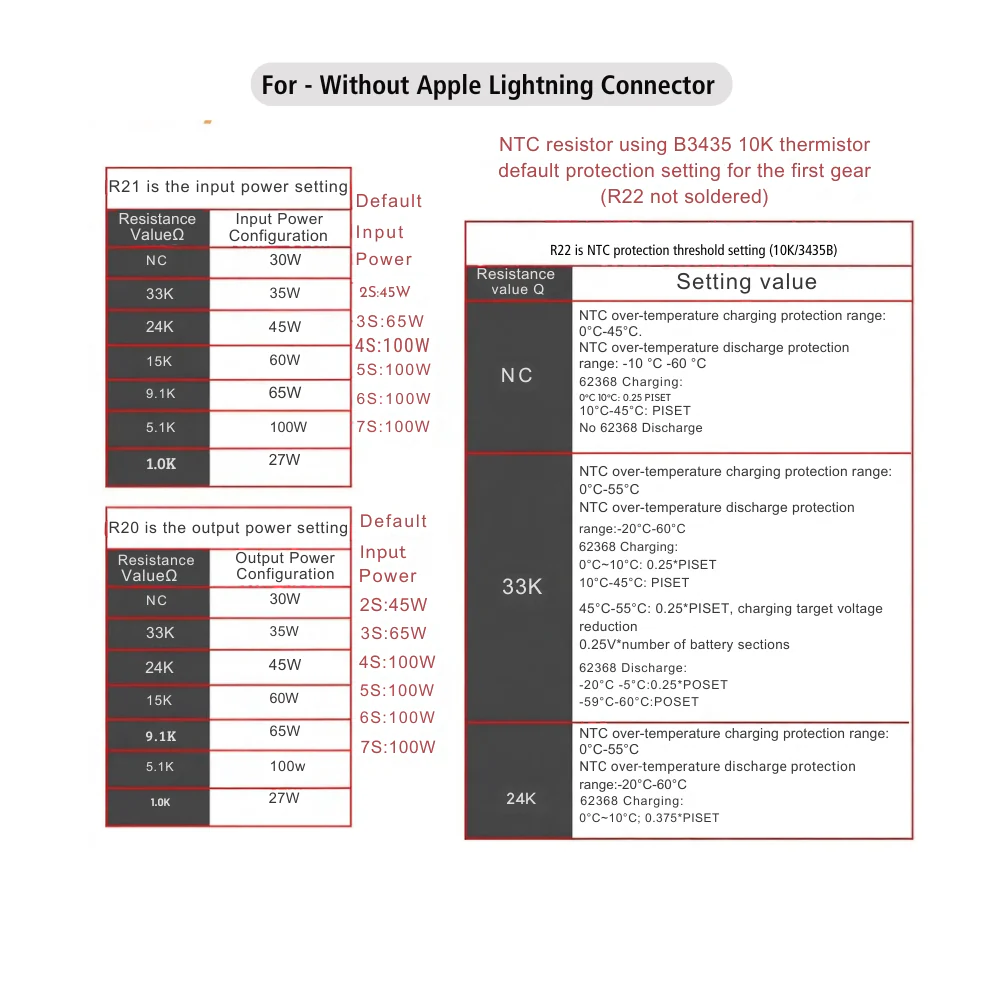

• Parameter    Specification
• USB Ports    4 (Type-C1, Type-C2, Type-A1, Type-A2)
• Input Ports    Type-C1, Type-C2
• Input Protocols    PD3.1, AFC, FCP, SCP
• Output Protocols (Type-C)    PPS, PD3.1, UFCS, QC3.0/QC2.0, AFC, FCP, SCP, SFCP
• Output Protocols (Type-A)    UFCS, QC3.0/QC2.0, AFC, FCP, SCP, SFCP
• PD / PPS Power    3.3–21V @ 5A
• Maximum Input Power    100W
• Maximum Output Power    60W
• QC2.0 Output    5V/3A, 9V/3A, 12V/2.8A, 20V/1.5A
• QC3.0 Output    3.6–20V (200mV steps)
• SCP Support    Up to 10V @ 4A
• Solar Charging    MPPT Supported
• Battery Support    2S–5S (6S–7S requires external BMS)

_______________________________________________________________________________________________
Notes:

1. Use a wire that can handle 10A current; 16AWG is recommended.
2. Compatible with 2-5 battery strings; ensure batteries have their own protection board.
3. Avoid using alligator clips for testing; use proper thick wires.
4. Suitable batteries include 18650, polymer, ternary lithium, with a capacity up to 25,000mAh; excludes dry, nickel-metal hydride, and lead-acid batteries.
5. Battery capacity must be preset.
6. Check compatibility with fast-charging protocols before purchase; returns not accepted for incompatible devices.
7. For small current batteries, refer to other models.

This power bank module provides high-performance power delivery and is perfect for both personal and professional use.
