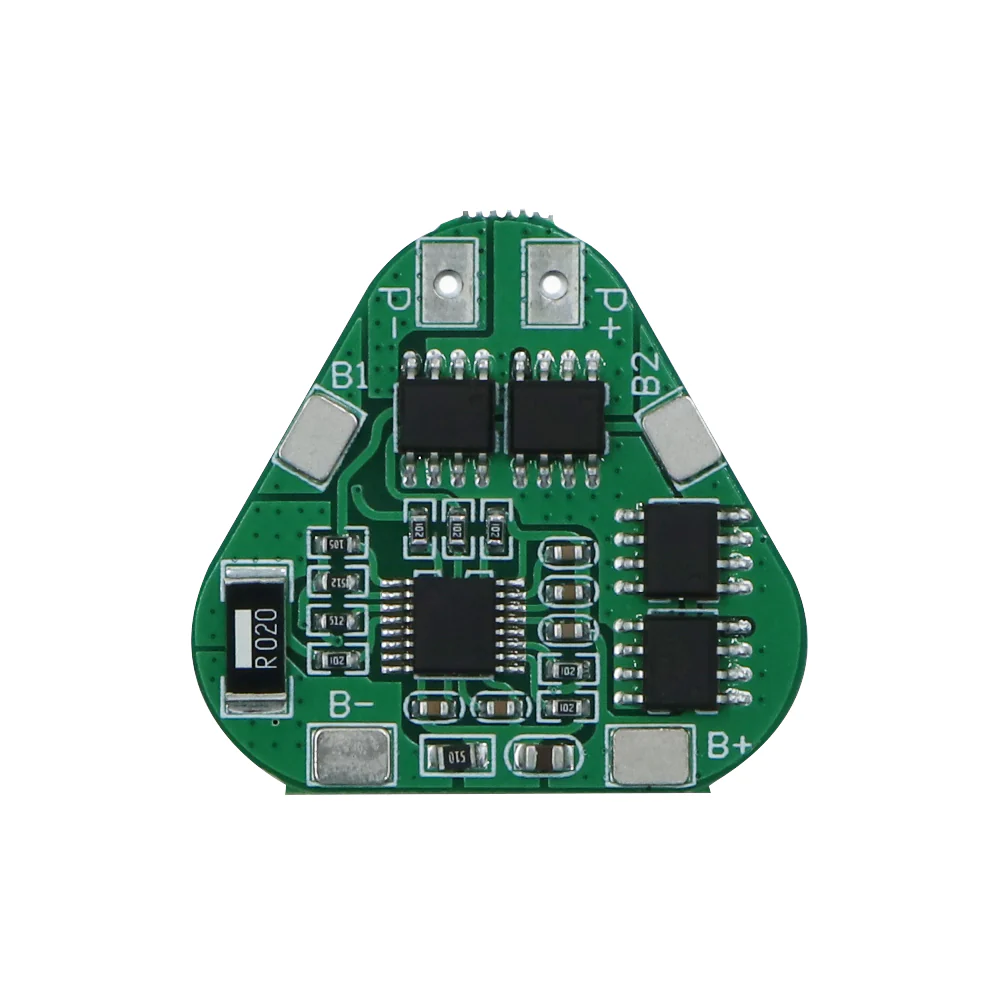

11-12.6V BMS 3S 6A 18650 Lithium Battery Protection Board LZ-18650-3S6A

The 3 Series 6A 18650 Lithium Battery Protection Board 11.1V/12.6V with Balance for Drill Motor Lipo Cell Module comes with recovery function-AUTO Recovery and Integrated 10 low load resistance MOS tube.

It provides a continuous discharge of 6A, 100mA balanced current, for electric drill/sprayer/LED lights/low power inverter.  (if the cooling environment is not good, please reduce the load current use)

The Scope of Nominal voltage of 3.6V, 3.7V lithium battery (including 18650,26650, a polymer lithium battery) where Charging voltage can be range between 12.6V to 13V. The board operates smoothly with a Continuous charge current of (upper limit): 6A. The balanced version is suitable for starting current below 80A, power 135W below the drill (with balance)

Specifications and Features:

1. Charging Voltage: 12.6V-13V
2. Overcharge Voltage Range: 4.25V-4.35V ± 0.05V
3. Overpressure Voltage Range: 2.3V-3.0V ± 0.05V
4. Upper Limit Operating Current: 5A-6A
5. Upper Limit Instantaneous Current: 10A
6. Quiescent Current: less than 30uA
7. Internal Resistance: less than 45mohm
8. Effective Life: more than 50,000 hours
9. Operating Temperature: -40- +50 degrees
10. Storage Conditions: -40- +80 degrees3S 11.1V 12.6V 6A 18650 lithium battery protection board (comes with recovery function-AUTO Recovery)
11. Application: Nominal voltage of 3.6V, 3.7V lithium battery (including 18650.26650, a polymer lithium battery)
12. Continuous discharge current (upper limit): 10A (if the cooling environment is not good, please reduce the load current use)
13. Continuous charge current (upper limit): 6A.

Package Includes:

1 x 12.6V BMS 3S 6A 18650 Lithium Battery Protection Board

Note: This product has two variants please check the images for more clarity.
