[Type 2] 1203BB DC 6V-28V 6V 12V 24V 3A PWM DC Motor Speed Controller Forward Reverse with Switch

[Type 2] 1203BB DC 6V-28V 6V 12V 24V 3A PWM DC Motor Speed Controller Forward Reverse with Switch

PWM Motor Speed Controller, DC 6V 12V 24V 3A PWM Motor Speed Control Reversible Controller Regulator with Switch 1203BB

The 1203BB DC Motor Speed Regulator controls the speed of a DC motor by adjusting Pulse-Width-Modulated (PWM). It provides a continuous current of 3A to your DC motor or other DC load. Besides, the circuit also includes a 3A fuse, with reverse connection of power supply and control the forward or reverse direction and the stop of DC motor by switch.

Features:

- Color: As the pictures show.
- Material: Metal.
- Size: 5 * 3.2 * 1.5cm.
- The input power range is DC6-28V.
- Control the forward or reverse direction and the stop of DC motor by switch.
- Potentiometer with switch function.
- The switch cable length 15cm.

Operating instruction:

Before you attempting to wire the controller, make sure that the power is off.

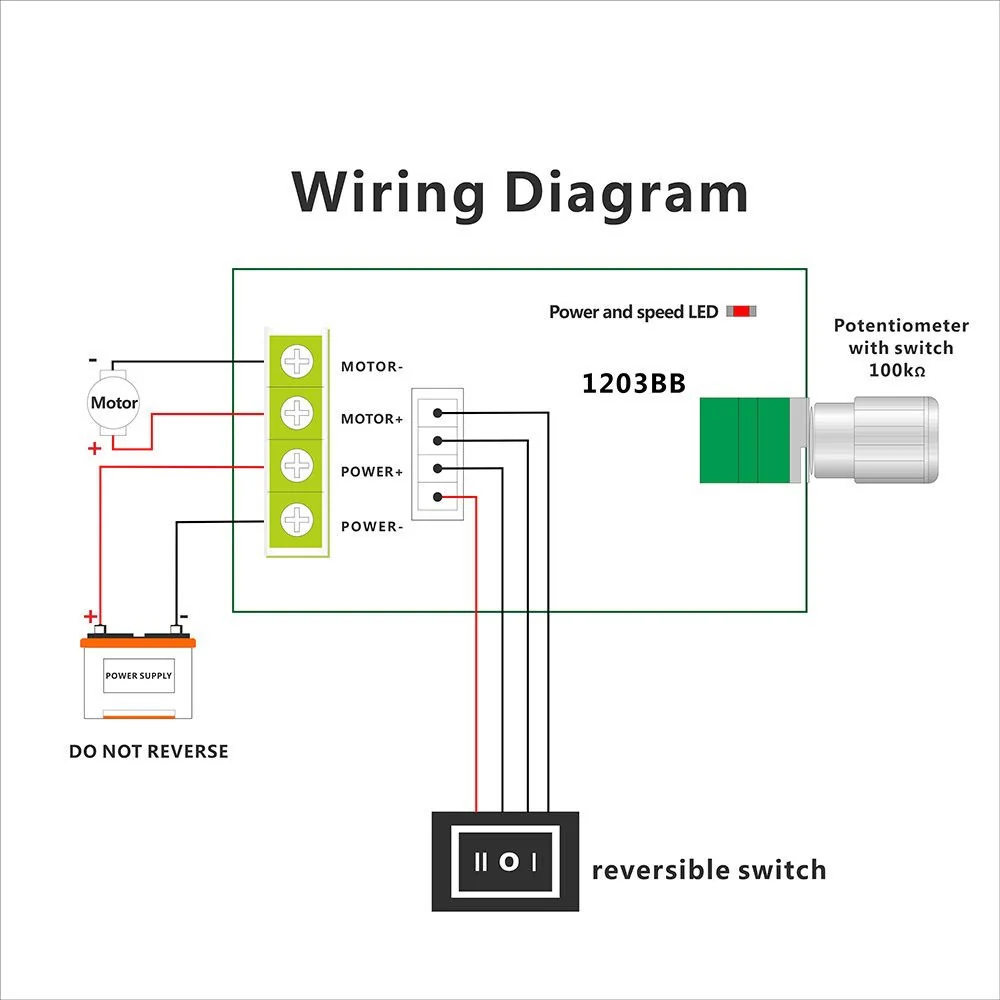

1. Connect wires refer to the wiring diagram.
2. Turn on the power, and adjust the potentiometer.
3. The LED indicates the power up and the speed of motor.

Note:- Do not use it as voltage regulators for other devices like LED's,Lights etc.

$1.61
[Type 2] 1203BB DC 6V-28V 6V 12V 24V 3A PWM DC Motor Speed Controller Forward Reverse with Switchā€”
$1.61

Product Information

Shipping & Returns

Description

PWM Motor Speed Controller, DC 6V 12V 24V 3A PWM Motor Speed Control Reversible Controller Regulator with Switch 1203BB

The 1203BB DC Motor Speed Regulator controls the speed of a DC motor by adjusting Pulse-Width-Modulated (PWM). It provides a continuous current of 3A to your DC motor or other DC load. Besides, the circuit also includes a 3A fuse, with reverse connection of power supply and control the forward or reverse direction and the stop of DC motor by switch.

Features:

- Color: As the pictures show.
- Material: Metal.
- Size: 5 * 3.2 * 1.5cm.
- The input power range is DC6-28V.
- Control the forward or reverse direction and the stop of DC motor by switch.
- Potentiometer with switch function.
- The switch cable length 15cm.

Operating instruction:

Before you attempting to wire the controller, make sure that the power is off.
1. Connect wires refer to the wiring diagram.
2. Turn on the power, and adjust the potentiometer.
3. The LED indicates the power up and the speed of motor.

Note:- Do not use it as voltage regulators for other devices like LED's,Lights etc.
