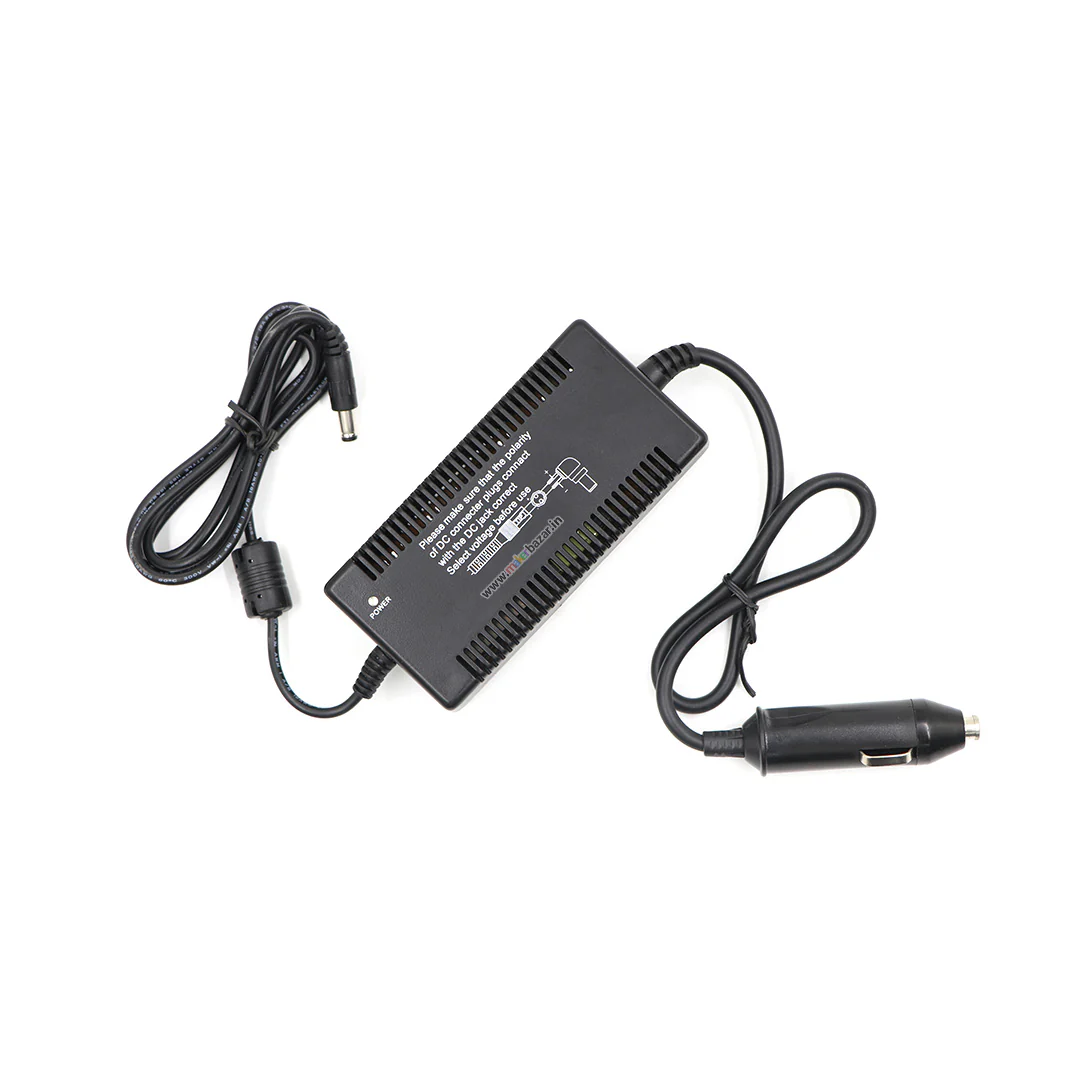

DC to DC 100W Laptop Adaptor for Cars with Charging Plugs
DC12-16V 12A Max Laptop Universal Car And Home Power Adaptor 16C-20V 5A Max 100W
This Model is a switching-mode power supply, operating at input DC voltage 12V to 16V and output DC voltage of 16V/18V/19V/20V OC, output current 5Amp max, output power 100 watt max. With an 8PCS tip connecter to suit almost Laptops, select output voltage to suit to Laptop and make sure- the polarity of the tips connects correctly before use. with many protection functions used for the notebook computer, power supply by 12V car battery
|
No. |
Item |
Specification |
|
1. |
Rated Input Voltage |
DC12V |
|
Vibration Input Voltage Range |
DC12V-16V |
|
|
2. |
Input Rated Current |
12Ampmax |
|
Input Min. Current |
100mA |
|
|
3. |
Input Power |
120W |
|
Output Power |
100W |
|
|
Efficiency |
>88%(TYP) |
|
|
4. |
Output voltage:16V/18V/19V/20V(0-0.8V no load) |
DC16V-20V |
|
5. |
Output voltage: 16V/18V/19V/20V(rating loadĀ±5%typical Ā±0.8V Output current: 16V/18V/19V/20V@5Amp max |
DC16V-20V@5Amp max |
|
6. |
Short Circuit Protection |
yes |
|
7. |
Output low voltage Protection |
yes |
|
8. |
Line Regulation |
Ā±5% |
|
9. |
Load Regulation |
Ā±5% |
Normal Operating Temperature and Humidity:
Operating Temperature:Ā 0 to 40'C
Humidity: 20% to 80
Storage Temperature and Humidity:
Storage Temperature: -I0'C to1oā¢c
Humidity: 10% to 90%
