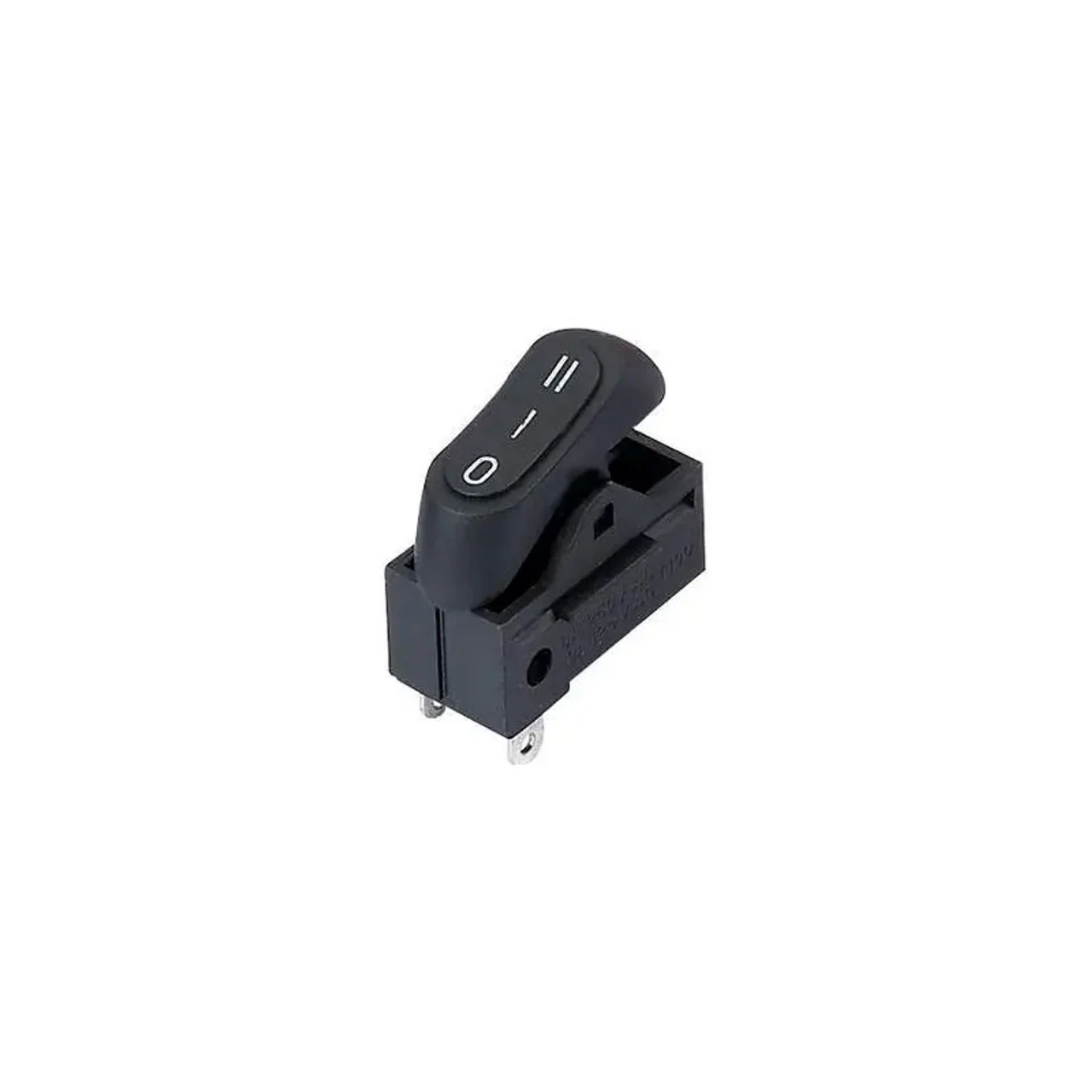

KCD1-122-1 Hair Dryer Rocker Switch 3 Position ON Off Boat Switch
Blower Rocker Switch Red Black Button SPDT OFF-ON-ON 3Pin - KCD1-122-1
The KCD1-122-1 Hair Dryer Rocker Switch is a reliable and high-quality switch that is ideal for various applications. It has a SPDT (OFF-ON-ON) contact configuration and 3 pins. It is made of high-quality Nylon 66 housing and button materials, which provide excellent durability and longevity. It has a black and red button color and a standard black housing color. It is rated at 10A 125VAC/6A 250VAC, and it has a contact resistance of 50mOhm max. It has been certified by CE, CQC, SGS, and it has an operating temperature range of -25C~+85C. It has an insulation resistance of 100mOhm min (500VDC) and a dielectric strength of >=1500VAC /5S/0.5mA. It has an electrical life of >= 10,000 Cycles and a mechanical life of >= 100,000 Cycles.
- SPDT (OFF-ON-ON) contact configuration
- 3 pins
- Made of high-quality Nylon 66 housing and button materials
- Black and red button color
- Standard black housing color
- Rated at 10A 125VAC/6A 250VAC
- Contact resistance of 50mOhm max
- Insulation resistance of 100mOhm min (500VDC)
- Dielectric strength of >=1500VAC /5S/0.5mA
- Operating temperature range of -25C~+85C
- Electrical life of >= 10,000 Cycles
- Mechanical life of >= 100,000 Cycles
- Certified by CE, CQC, SGS
- OEM or ODM available
Original: $0.18
-72%$0.18
$0.05Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
Blower Rocker Switch Red Black Button SPDT OFF-ON-ON 3Pin - KCD1-122-1
The KCD1-122-1 Hair Dryer Rocker Switch is a reliable and high-quality switch that is ideal for various applications. It has a SPDT (OFF-ON-ON) contact configuration and 3 pins. It is made of high-quality Nylon 66 housing and button materials, which provide excellent durability and longevity. It has a black and red button color and a standard black housing color. It is rated at 10A 125VAC/6A 250VAC, and it has a contact resistance of 50mOhm max. It has been certified by CE, CQC, SGS, and it has an operating temperature range of -25C~+85C. It has an insulation resistance of 100mOhm min (500VDC) and a dielectric strength of >=1500VAC /5S/0.5mA. It has an electrical life of >= 10,000 Cycles and a mechanical life of >= 100,000 Cycles.
- SPDT (OFF-ON-ON) contact configuration
- 3 pins
- Made of high-quality Nylon 66 housing and button materials
- Black and red button color
- Standard black housing color
- Rated at 10A 125VAC/6A 250VAC
- Contact resistance of 50mOhm max
- Insulation resistance of 100mOhm min (500VDC)
- Dielectric strength of >=1500VAC /5S/0.5mA
- Operating temperature range of -25C~+85C
- Electrical life of >= 10,000 Cycles
- Mechanical life of >= 100,000 Cycles
- Certified by CE, CQC, SGS
- OEM or ODM available
