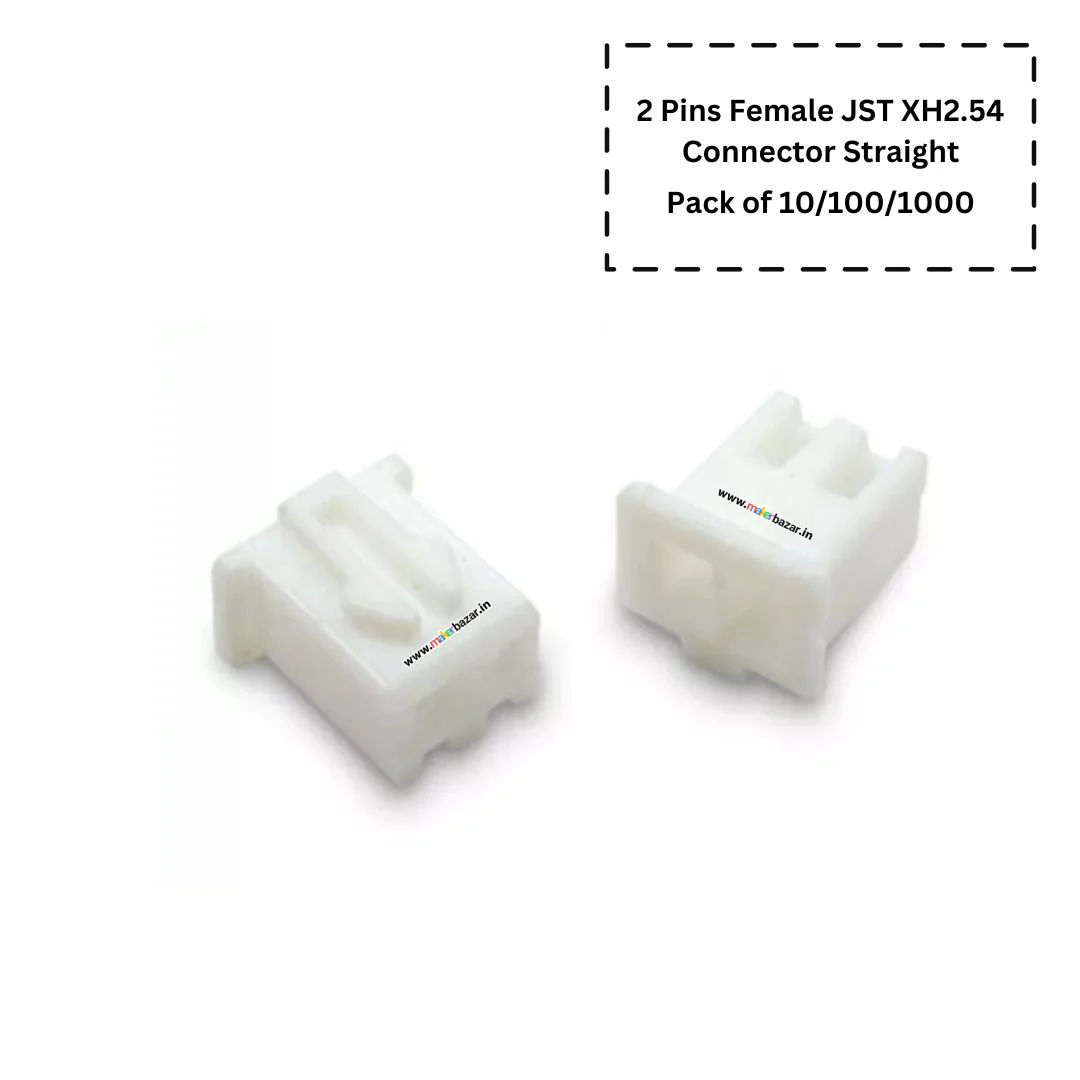

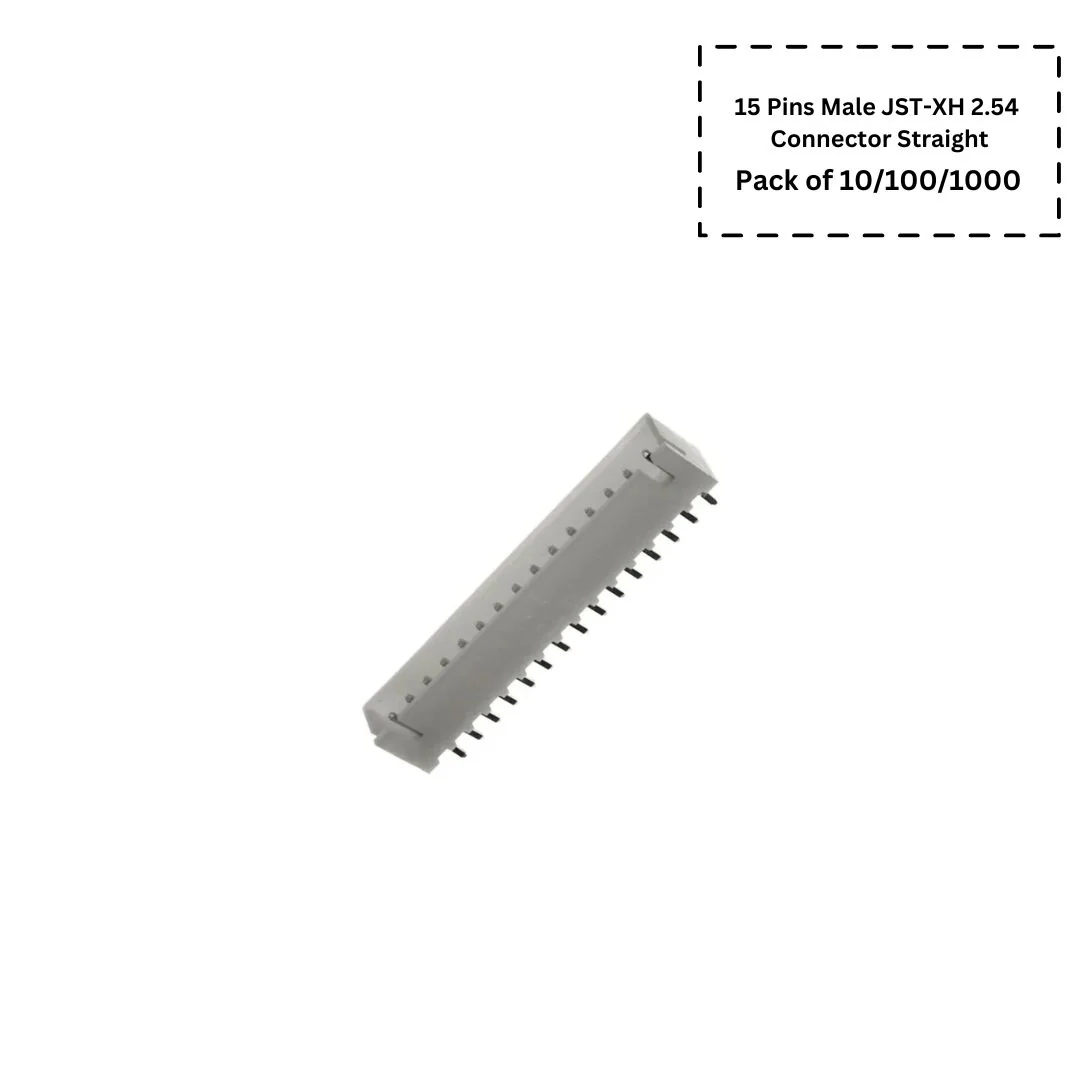

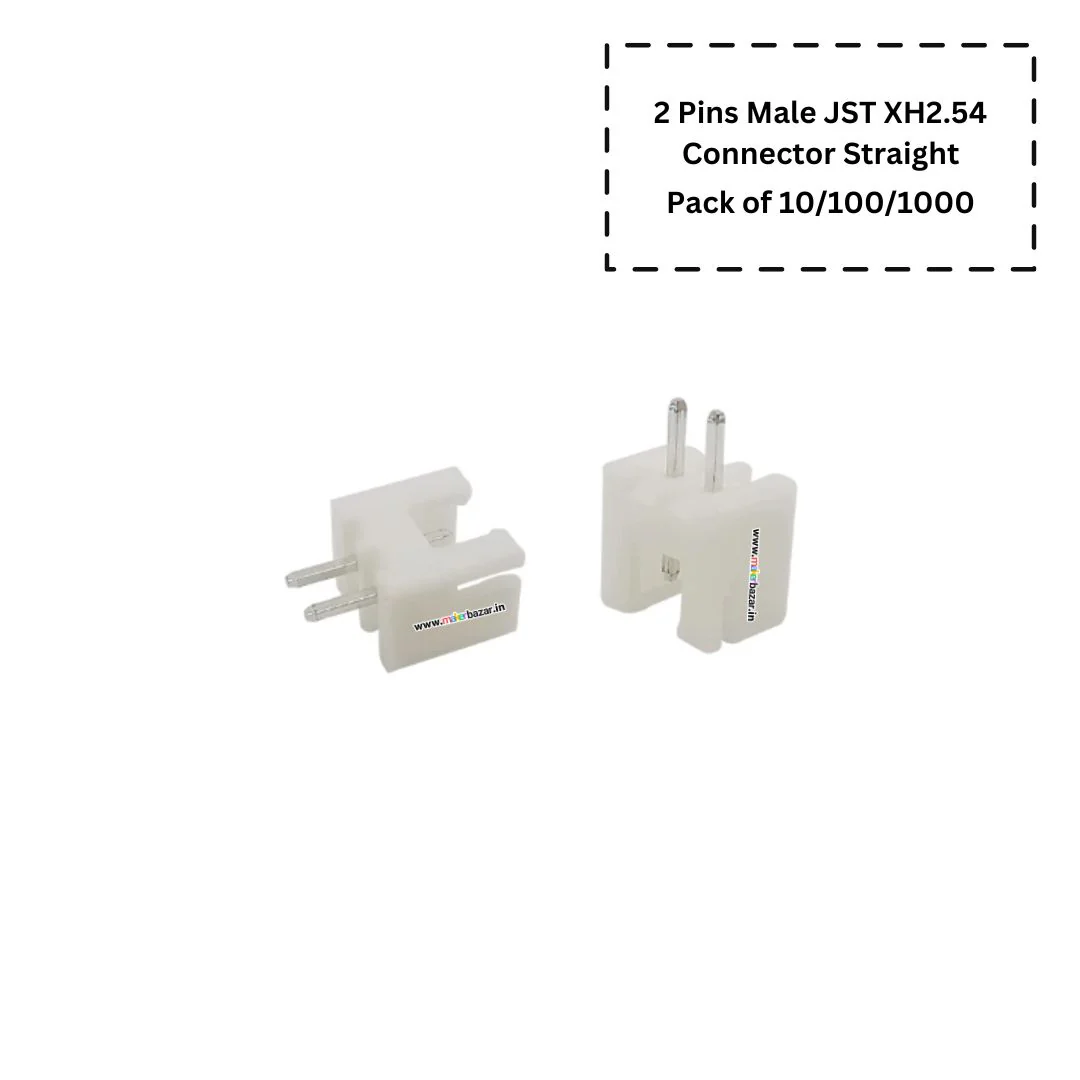

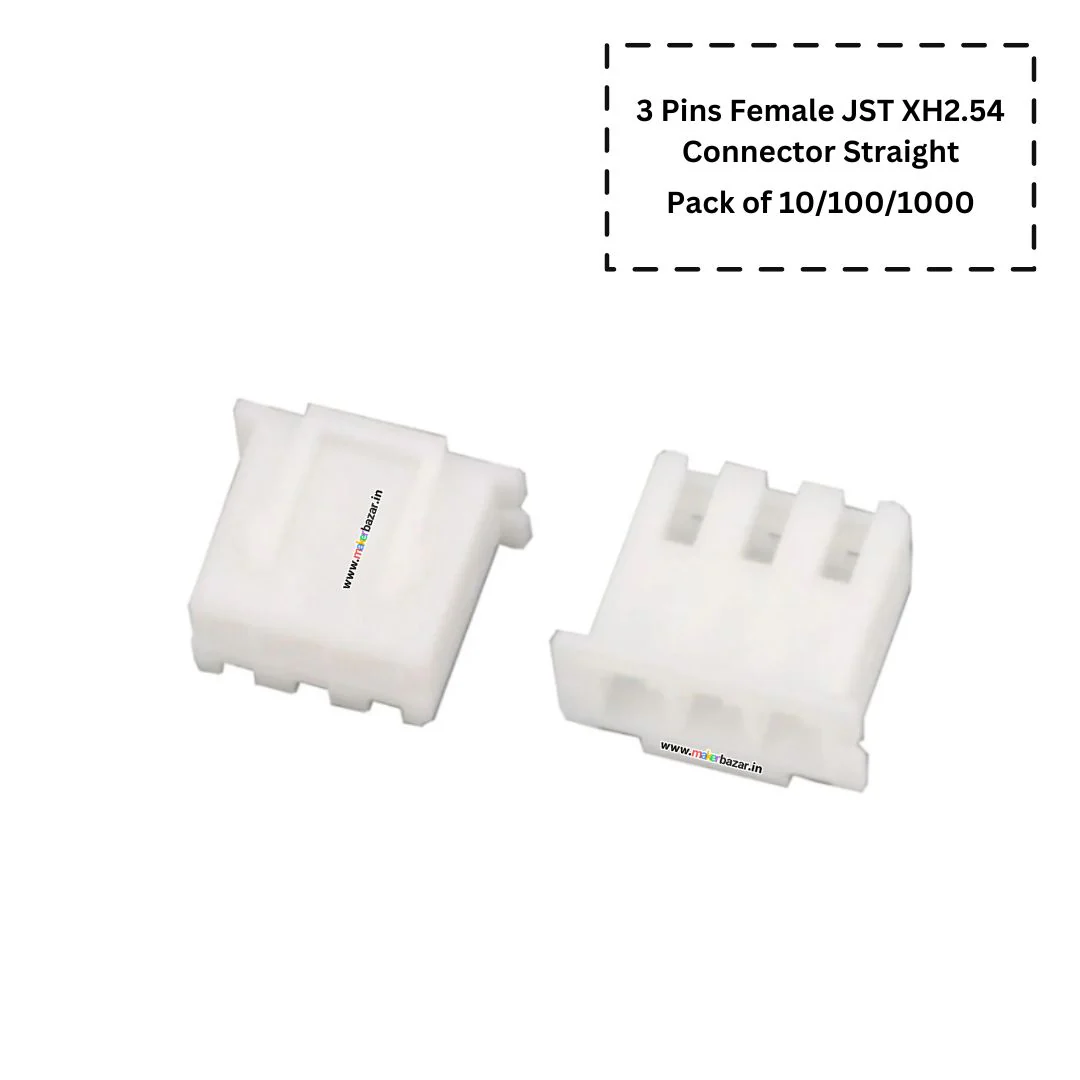

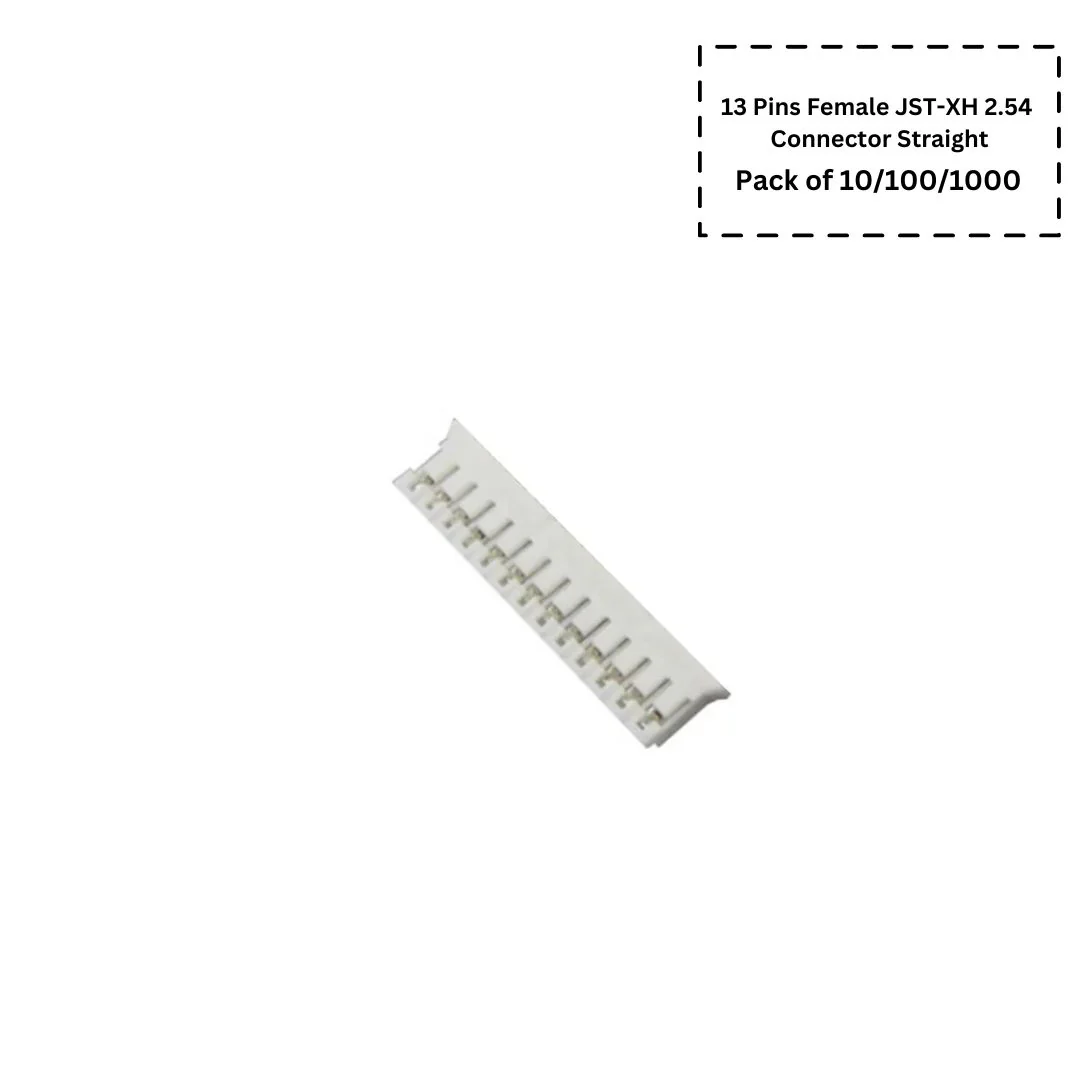

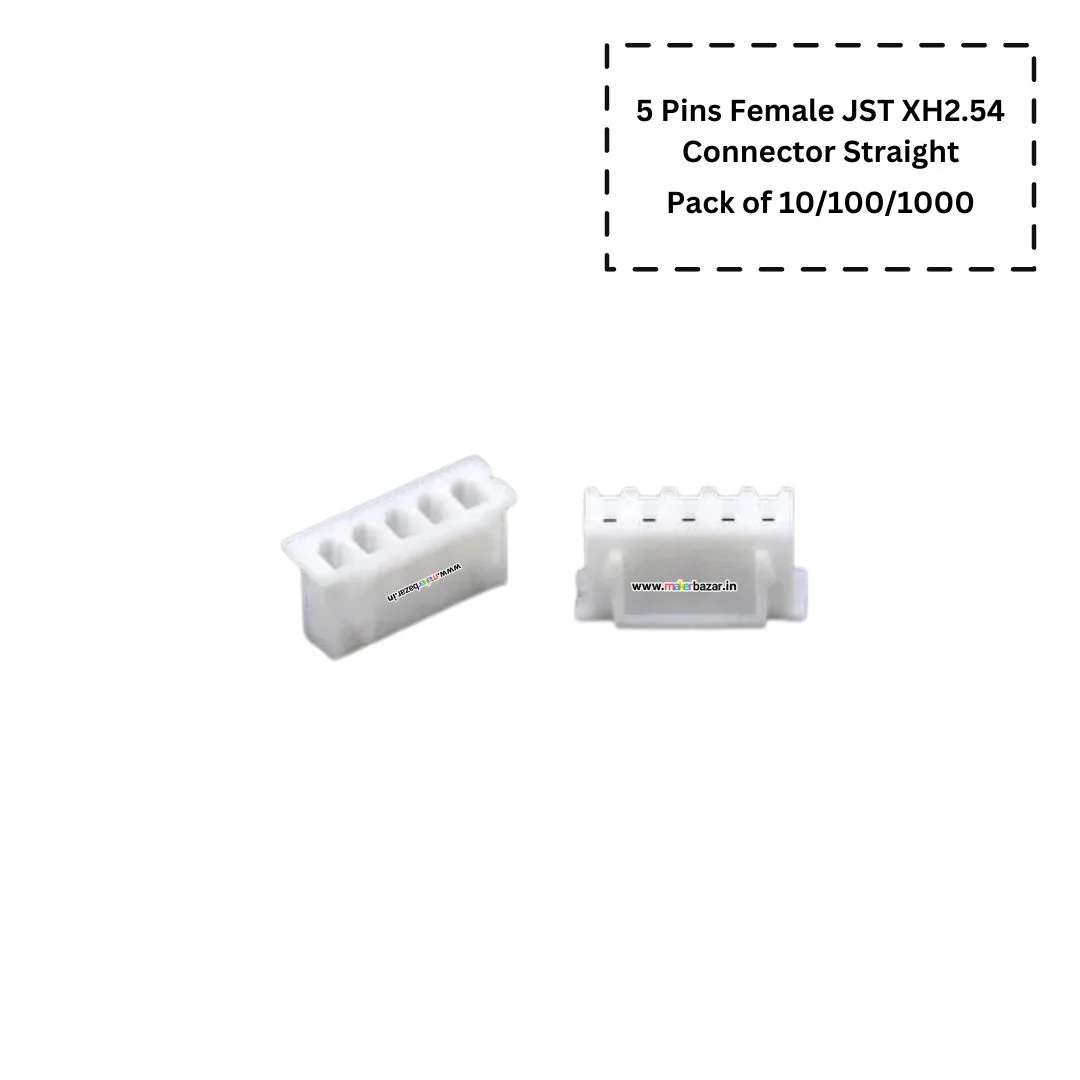

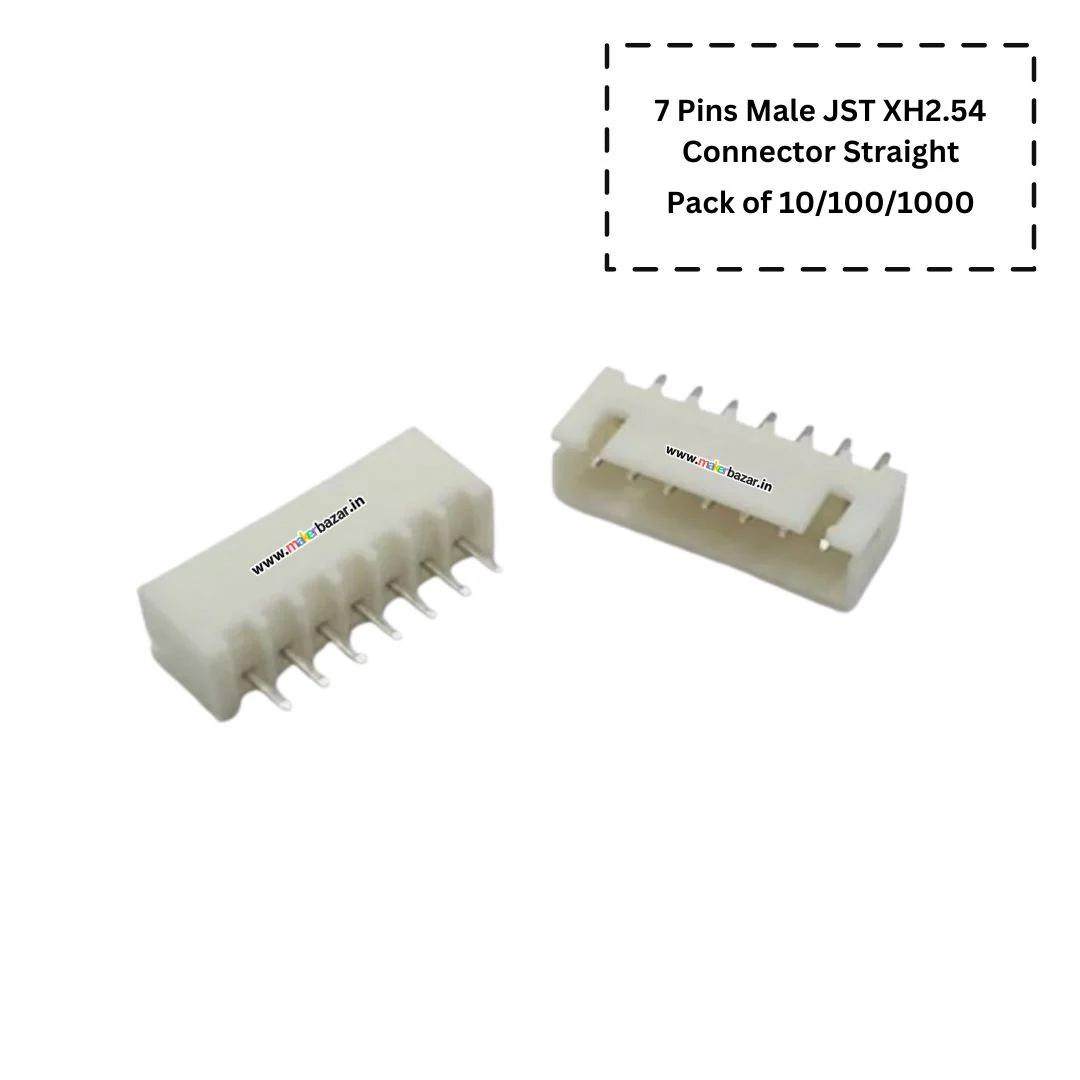

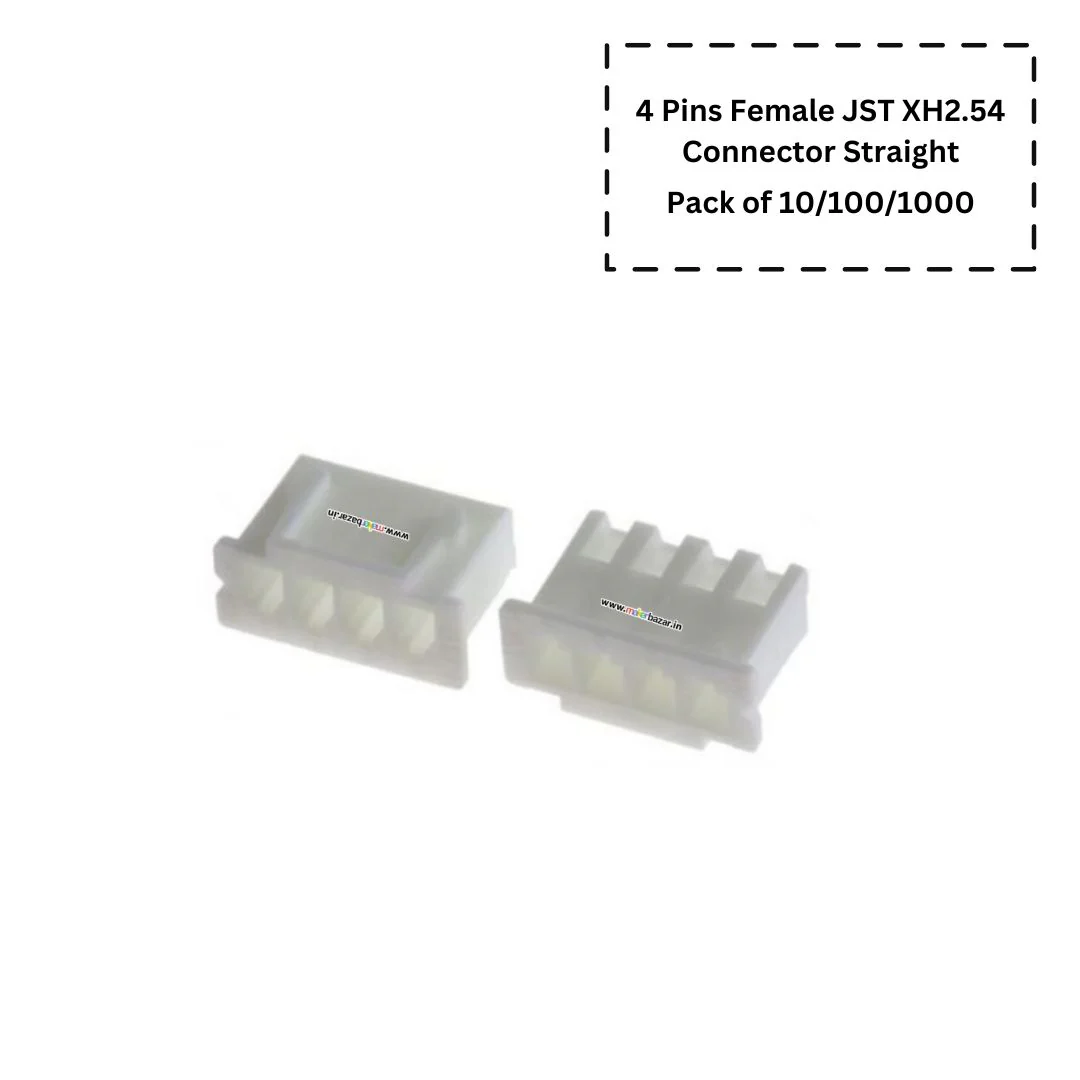

Male/Female JST-XH 2.54 Connector Straight

2515 JST XH Series Dis-Connectable Crimp Style Shrouded Header Straight Connectors

The JST XH Series 2515 Dis-Connectable Crimp Style Shrouded Header Straight Connectors are highly reliable and widely used connectors known for their compact design and versatile applications.

Click Here for Assortment Kit.

Click Here for Terminal Female Pins.

General Information

• Series: XH
• Type: Shrouded Header, Straight
• Part Number: 2515 (Series specific)

Features

• Shrouded Design: The connectors feature a shrouded header which provides protection against misalignment and ensures secure mating with the corresponding housing.
• Compact Size: Designed for use in high-density applications, the connectors offer a compact form factor without compromising performance.
• Crimp Style: These connectors are designed to be used with crimp terminals, which allows for secure and reliable electrical connections.
• Straight Orientation: The pins are arranged in a straight configuration, which is suitable for various PCB layout designs.

Electrical Specifications

• Current Rating: Up to 3A per contact
• Voltage Rating: 250V AC/DC
• Contact Resistance: Maximum of 20 mΩ
• Insulation Resistance: Minimum of 1000 MΩ at 500V DC
• Withstanding Voltage: 1000V AC/minute

Mechanical Specifications

• Contact Material: Phosphor bronze with tin plating
• Housing Material: Nylon 66, UL 94V-0 rated
• Pitch: 2.5mm (0.098 inches)

Environmental Specifications

• Operating Temperature Range: -25°C to +85°C

Applications

• Consumer Electronics: Ideal for connections in consumer electronic devices such as TVs, audio systems, and appliances.
• Industrial Equipment: Used in industrial machinery for reliable power and signal connections.
• Automotive: Suitable for automotive applications due to its robust design and reliable performance.
• Medical Devices: Employed in medical devices where compact and reliable connections are crucial.

Advantages

• Reliability: The shrouded design ensures a secure connection and prevents improper mating.
• Versatility: Available in a variety of positions to fit different application needs.
• Ease of Use: Crimp style makes for easy assembly and maintenance.
