MH-SR602 MINI Motion Sensor Detector Module For Arduino

MH-SR602 MINI Motion Sensor Detector Module For Arduino

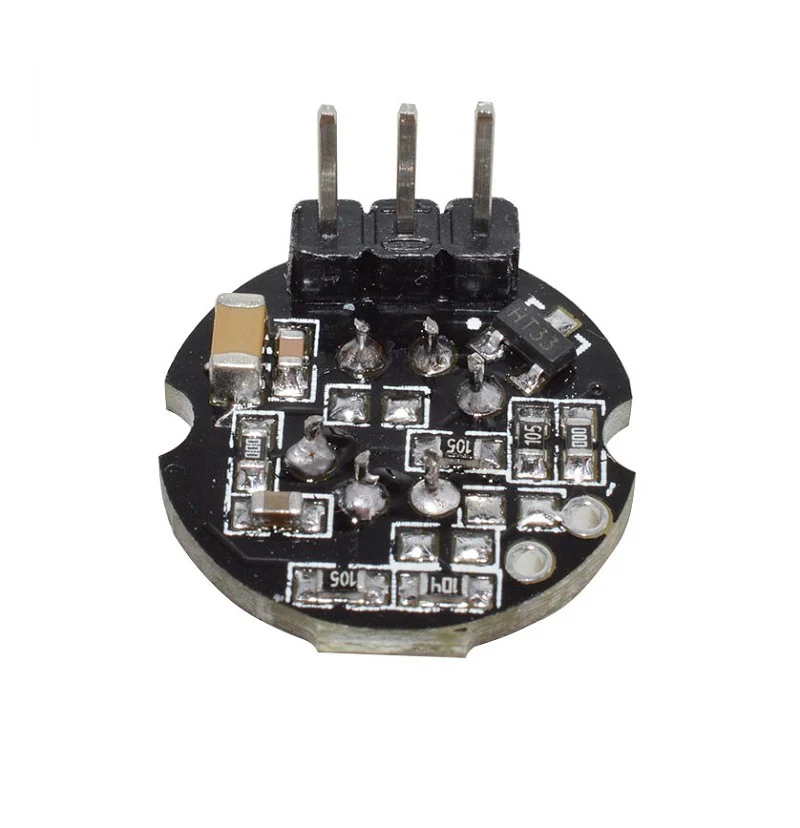

Mini PIR Sensor Module

MH-SR602 MINI Motion Sensor Detector Module is used as a Pyroelectric human body infrared sensor module. This module has a sensing distance of up to 5 meters. It Can be used for body sensor lights, alarms, and security.

Note:

The high-level time of the output of this product is adjustable, 2.5 seconds to 1 hour, the output time set at the factory.
It is 2.5 seconds, and you can change one chip resistor if you need to change it. Please read the resistance value corresponding to the typical delay time.

Features:

  1. High sensitivity
  2. Fast response
  3. Small static power consumption
  4. Small size
  5. Easy to install

Specifications:

Model

SR602
Sensing Distance

3M-5M
Delay

Adjustable
Power supply DC

3.3V-15V
Output

high level, H=3.3V, L=0V
Quiescent current

20uA
Colour

Black

Package Includes:

1 x MH-SR602 MINI Motion Sensor Detector Module For Arduino
