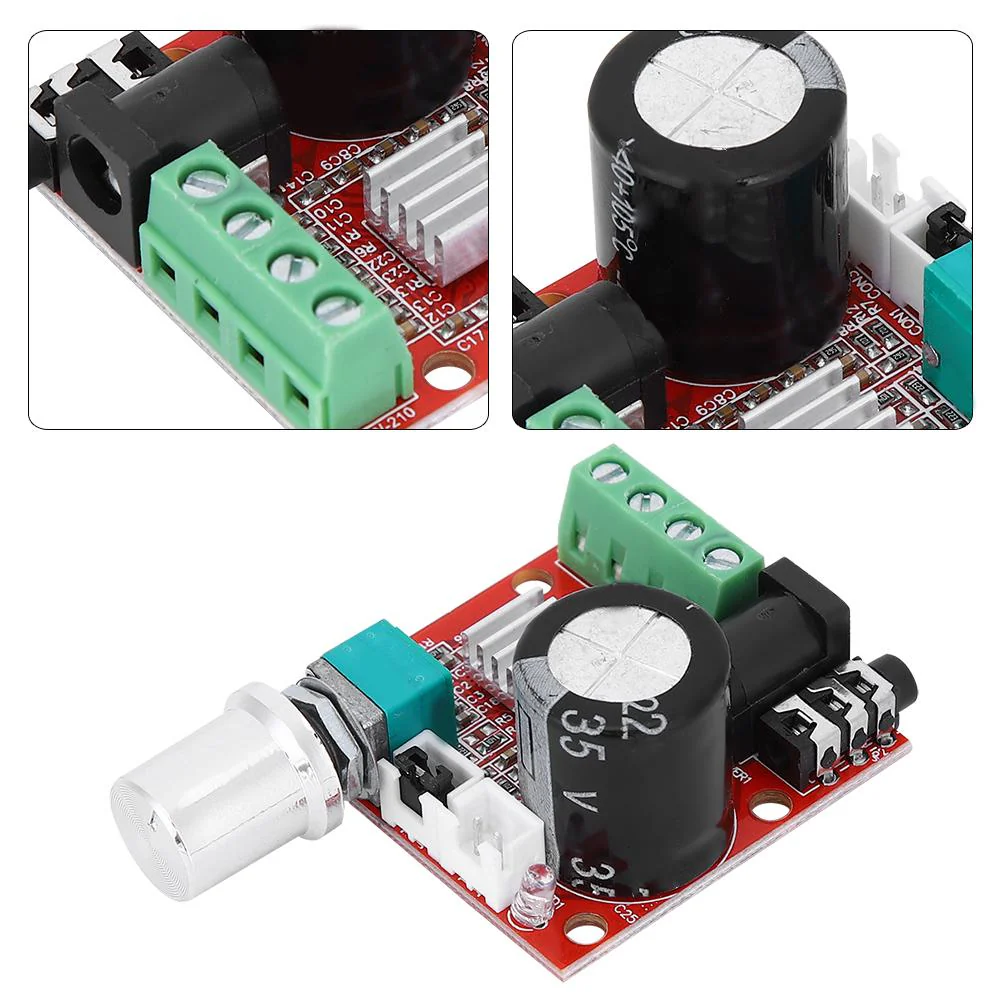

PAM 8610 Digital Stereo Class-D Amplifier Board 2x15W Output

PAM 8610 Digital Stereo Class-D Amplifier Board 2x15W Output

XH-M120 PAM8610 Dual Channel Digital Stereo Class-D Amplifier Board 2x15Watt Output

The PAM8610 is a 15W (per channel) stereo Class-D audio amplifier with DC Volume Control which offers low THD+N (0.1%), low EMI, and good PSRR thus high-quality sound reproduction. The 32 steps DC volume control has a +32dB to -75dB range. The PAM 8610 runs on a 7V to 15V supply at a much higher efficiency than competitorsā€™ ICs.

How to use:

  1. The power supply voltage limit is 16.5V, do not use more than this voltage.
  2. The power supply is recommended for 12v, 3A power supply filter better.
  3. 4-8 inch stereo speakers recommended.
  4. Ā Do not short-circuit the audio output to each other or shorted to ground.
  5. Carefully check before electricity, ensure the wiring is correct before electricity.

Ā Features :

  1. This plate with a switching function, SW short, will turn off the power amplifier.
  2. Working Mode: Class D (PWM modulation type).

Package Includes :

1 x PAM 8610 Digital Stereo Class-D Amplifier Board 2x15W Output
Select Model
From $1.07
PAM 8610 Digital Stereo Class-D Amplifier Board 2x15W Outputā€”
$1.07

Product Information

Shipping & Returns

Description

XH-M120 PAM8610 Dual Channel Digital Stereo Class-D Amplifier Board 2x15Watt Output

The PAM8610 is a 15W (per channel) stereo Class-D audio amplifier with DC Volume Control which offers low THD+N (0.1%), low EMI, and good PSRR thus high-quality sound reproduction. The 32 steps DC volume control has a +32dB to -75dB range. The PAM 8610 runs on a 7V to 15V supply at a much higher efficiency than competitorsā€™ ICs.

How to use:

  1. The power supply voltage limit is 16.5V, do not use more than this voltage.
  2. The power supply is recommended for 12v, 3A power supply filter better.
  3. 4-8 inch stereo speakers recommended.
  4. Ā Do not short-circuit the audio output to each other or shorted to ground.
  5. Carefully check before electricity, ensure the wiring is correct before electricity.

Ā Features :

  1. This plate with a switching function, SW short, will turn off the power amplifier.
  2. Working Mode: Class D (PWM modulation type).

Package Includes :

1 x PAM 8610 Digital Stereo Class-D Amplifier Board 2x15W Output
