QIACHIP 433 mhz Mini Wireless RF Remote Control 1527 EV1527 Learning code 433mhz Transmitter For Gate garage door Alarm Light controller

QIACHIP 433 mhz Mini Wireless RF Remote Control 1527 EV1527 Learning code 433mhz Transmitter For Gate garage door Alarm Light controller

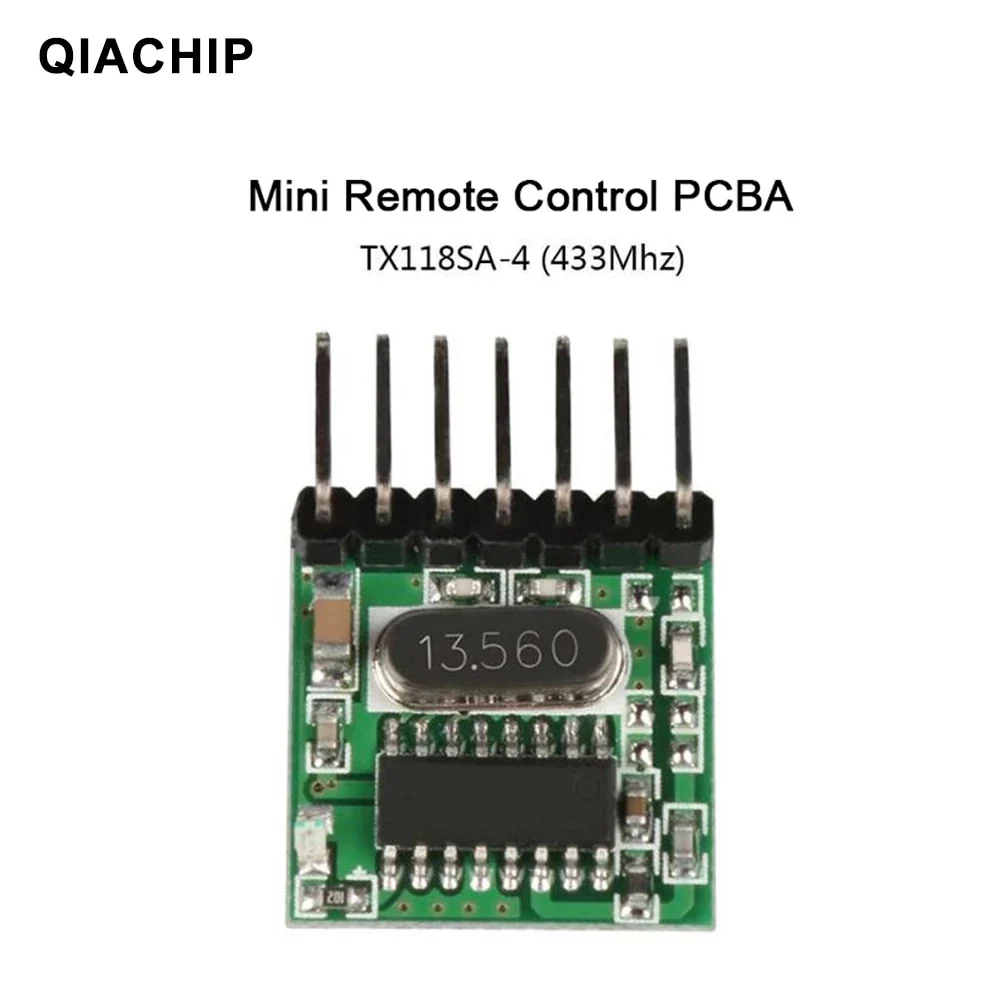

433Mhz transmitter Encoding module EV1527 2262 Coding 4 channel Wireless Remote Superheterodyne RF control

Model: TX118SA-4

  • Transmitting power: 11dbm
  • Distance: 30-100m
  • Emission current: 10MA
  • Rate of fire: maximum 10KB / S
  • Transmit deviation: +/- 7. 5KHZ / narrow-band emission
  • Modulation: ASK
  • Operating Voltage: DC 3V-24v
  • Encoding : EV1527 1527 Learning code
  • Each module has a unique ID address code.
  • All modules K1-K4 four key code is the same.

Pin Description:

  • - : Negative power supply
  • +: Positive power supply, DC 3-24V
  • Pin Description:
  • - : Negative power supply
  • +: Positive power supply, DC 3-24V
  • K1: 1 short to  Negative start transmitting data, Similar the A button on the remote control.
  • K2:  2 short to  Negative start transmitting data, Similar the B  button on the remote control.
  • K3:  3 short to  Negative start transmitting data, Similar the C  button on the remote control.
  • K4:  4 short to  Negative start transmitting data, Similar the D  button on the remote control.
  • ANT: transmitting antenna
    $1.50
    QIACHIP 433 mhz Mini Wireless RF Remote Control 1527 EV1527 Learning code 433mhz Transmitter For Gate garage door Alarm Light controller—
    $1.50

    Product Information

    Shipping & Returns

    Description

    433Mhz transmitter Encoding module EV1527 2262 Coding 4 channel Wireless Remote Superheterodyne RF control

    Model: TX118SA-4

    • Transmitting power: 11dbm
    • Distance: 30-100m
    • Emission current: 10MA
    • Rate of fire: maximum 10KB / S
    • Transmit deviation: +/- 7. 5KHZ / narrow-band emission
    • Modulation: ASK
    • Operating Voltage: DC 3V-24v
    • Encoding : EV1527 1527 Learning code
    • Each module has a unique ID address code.
    • All modules K1-K4 four key code is the same.

    Pin Description:

    • - : Negative power supply
    • +: Positive power supply, DC 3-24V
    • Pin Description:
    • - : Negative power supply
    • +: Positive power supply, DC 3-24V
    • K1: 1 short to  Negative start transmitting data, Similar the A button on the remote control.
    • K2:  2 short to  Negative start transmitting data, Similar the B  button on the remote control.
    • K3:  3 short to  Negative start transmitting data, Similar the C  button on the remote control.
    • K4:  4 short to  Negative start transmitting data, Similar the D  button on the remote control.
    • ANT: transmitting antenna
