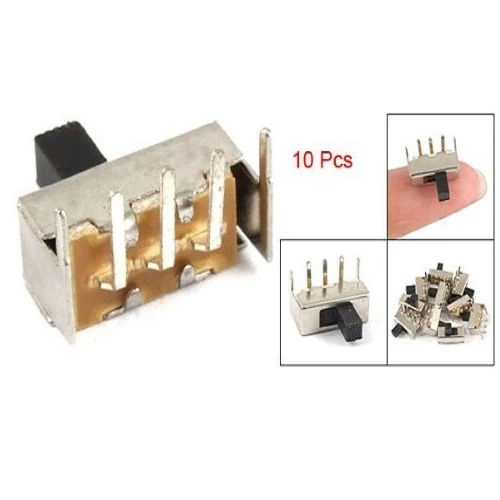

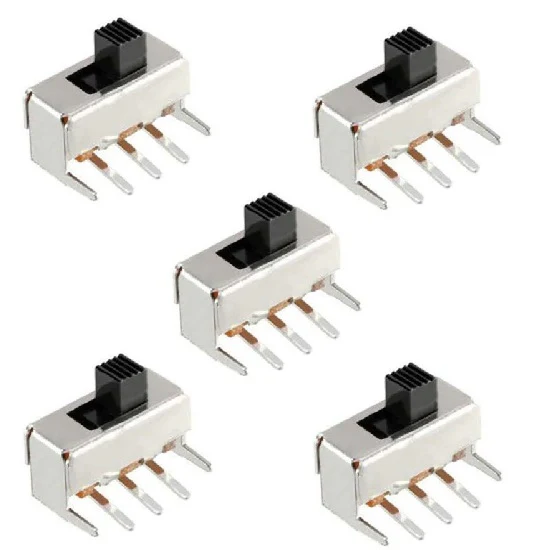

Slide Switch RA – PCB Mount (Pitch 0.1 inch) Right Angle

These tiny slide switches are widely used to control operation of many small power electronic projects, including volume and other controls for audio video, dimmer controls for lights. etc. You can also use this for DIY projects since the pins are easily solderable.

Features

• Right angled Slide Switch. Type - 1 Pole 2 Throw
• Green High quality Fibre Glass
• Working Power :0.5A 50V DC
• Contact Resistance: 30mΩ Max, Insulation Resistance:100mΩ Min at 500V DC
• Maximum Voltage:AC 500V for 10 Seconds
• Pin Pitch:2.54mm / 1""
• Dimensions : Main Body Size: 13 x 6.5 x 5.5mm
• Material(External):Plastic, Metal
• Color: Silver Tone, Black

Specifications

• Right angled Slide Switch. Type - 1 Pole 2 Throw
• Easy Structure, Mini Body, 3 Terminal, Vertical Handle
• 1 Pole 2 -Position, Sliding Knob Actuator
• Contact Resistance: 30mΩ Max, Insulation Resistance:100mΩ Min at 500V DC
• Maximum Voltage:AC 500V for 10 Seconds
• Pin Pitch:2.54mm / 1""
