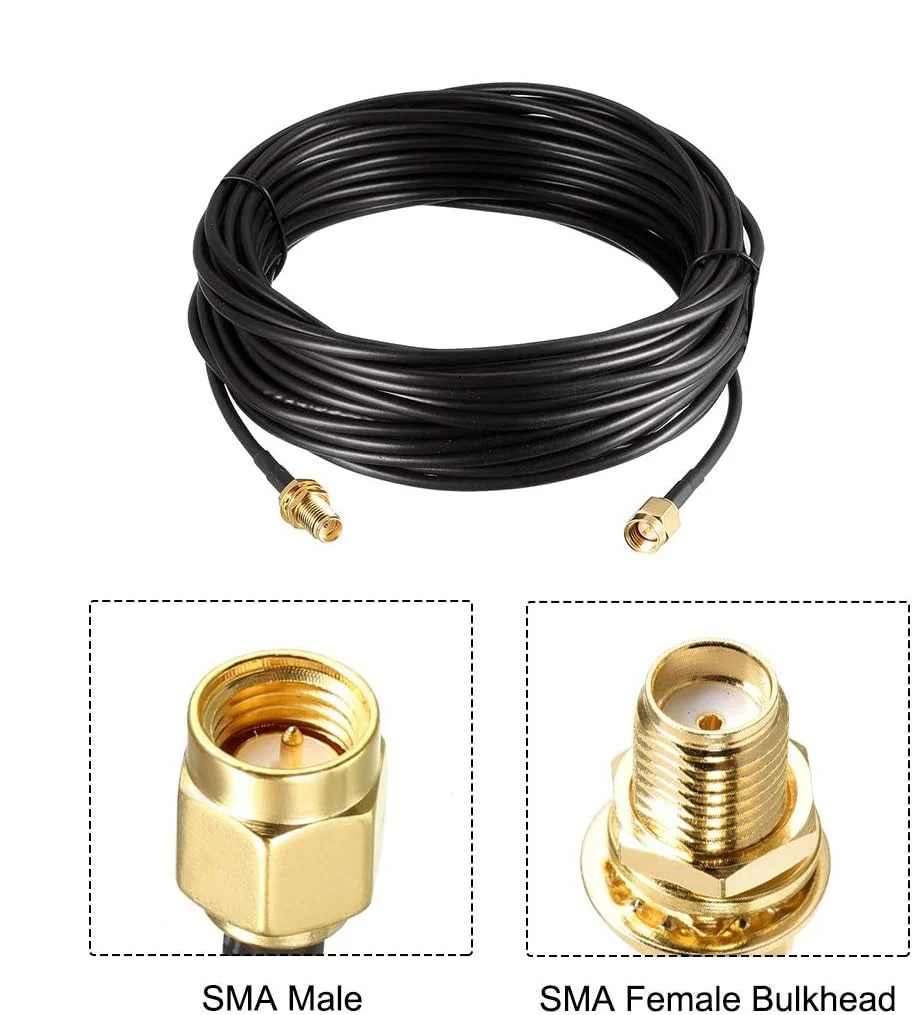

SMA to SMA RG-174 Low Loss Coaxial Jumper RF Antenna Wifi Router Cable

SMA Extension Cable SMA to SMA Antenna RF Coax Cable RG174 for Radio

Enhance your RF, antenna, or WiFi router setups with this SMA to SMA jumper cable, assembled using high-quality RG-174 low-loss coaxial cable. Supporting a frequency range from DC up to 6 GHz, this flexible jumper links your wireless device, router, SDR, or antenna extension reliably with minimal signal loss. Precision gold-plated contacts and a 50Ω impedance design ensure compatibility with most industry-standard SMA devices for LTE, GPS, ham radio, IoT, radio receivers, and WiFi routers (check for SMA, not RP-SMA, ports).

---

Key Features

• Connector Type: SMA to Female

• Cable Type: RG-174 Coaxial

• Impedance: 50 Ohms

• Supported Frequency Range: DC–6 GHz (typical); compatible with wideband RF applications

• Signal Loss (@1m): ~1.3dB @900MHz for RG-174; lower with premium LMR-240 type

• Flexible and lightweight, ideal for tight spaces or portable gear

• Available lengths: 15cm, 30cm, 50cm, 1m, 2m, and more

• Gold-plated brass contacts for enhanced conductivity and corrosion resistance

• Temperature range: –40°C to +85°C (standard RG-174)

• Application: RF modules, routers, repeaters, SDR, IoT, GPS, Ham radio, antenna extension, wireless cameras, RF boards
