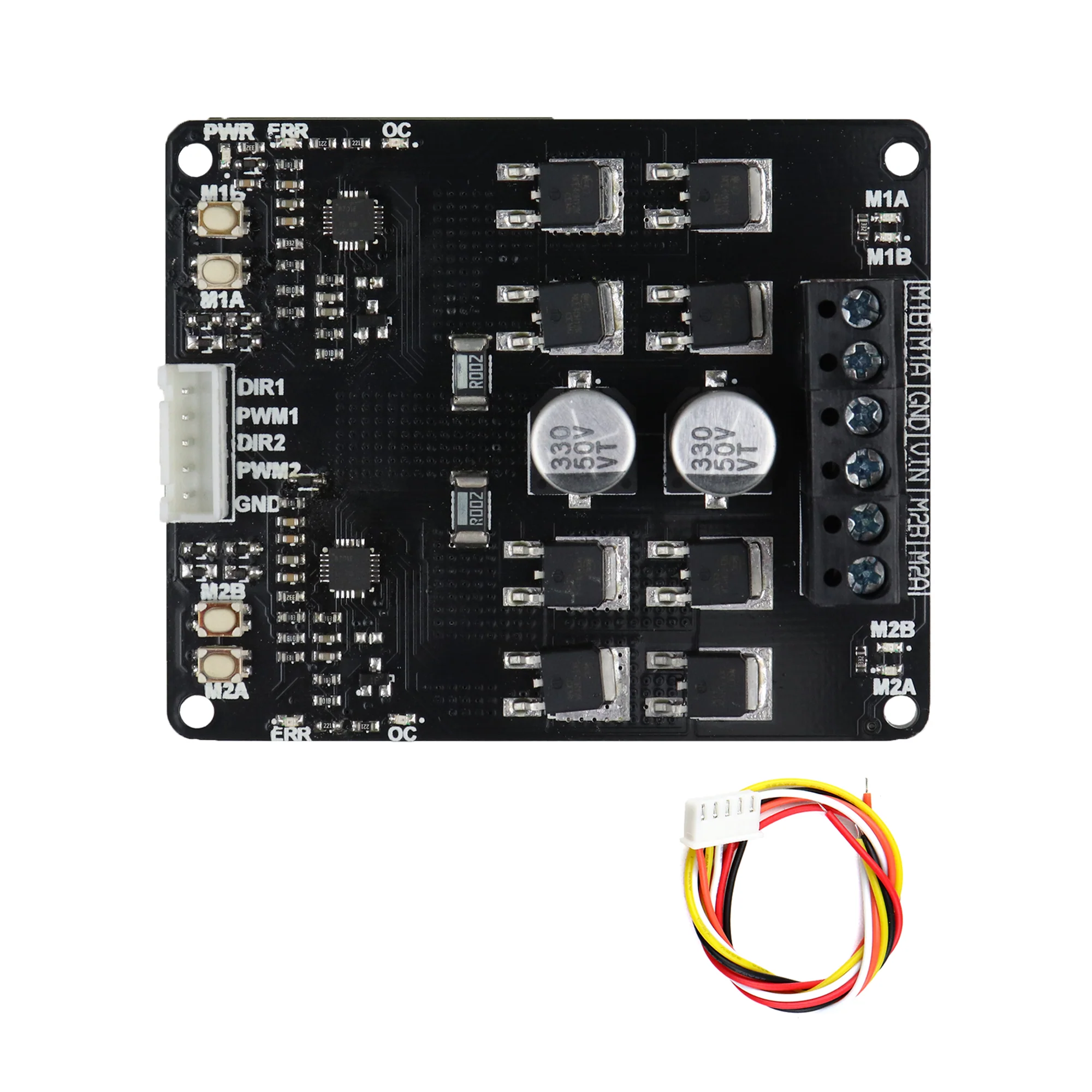

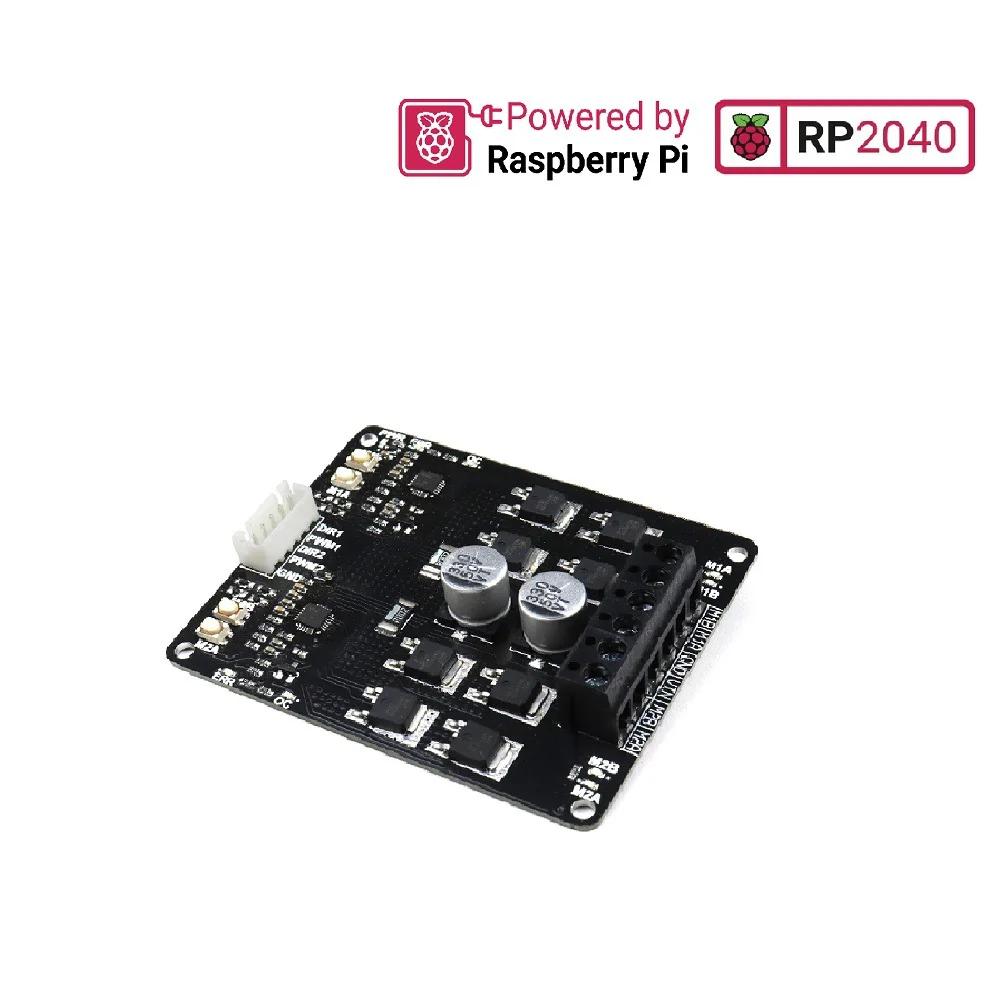

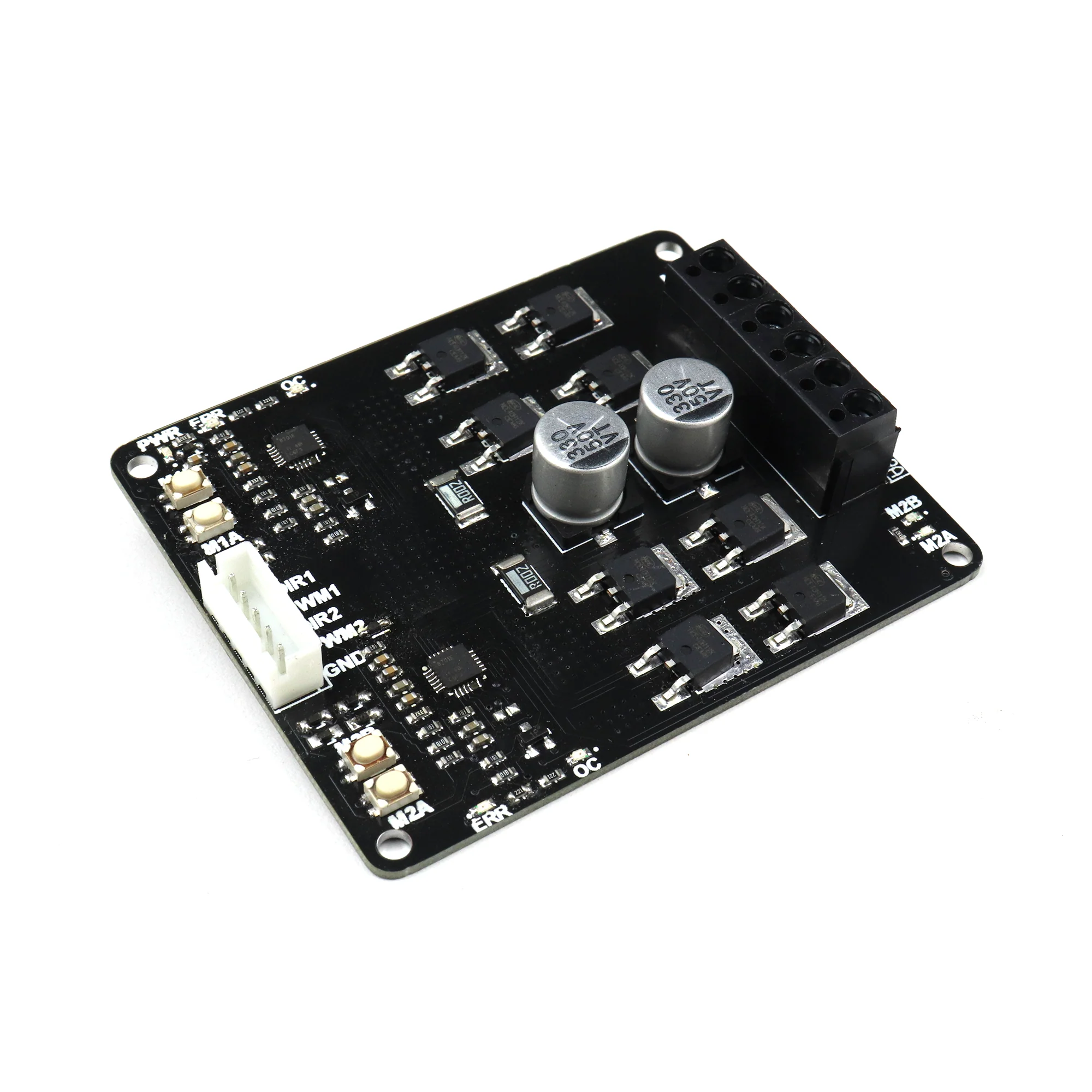

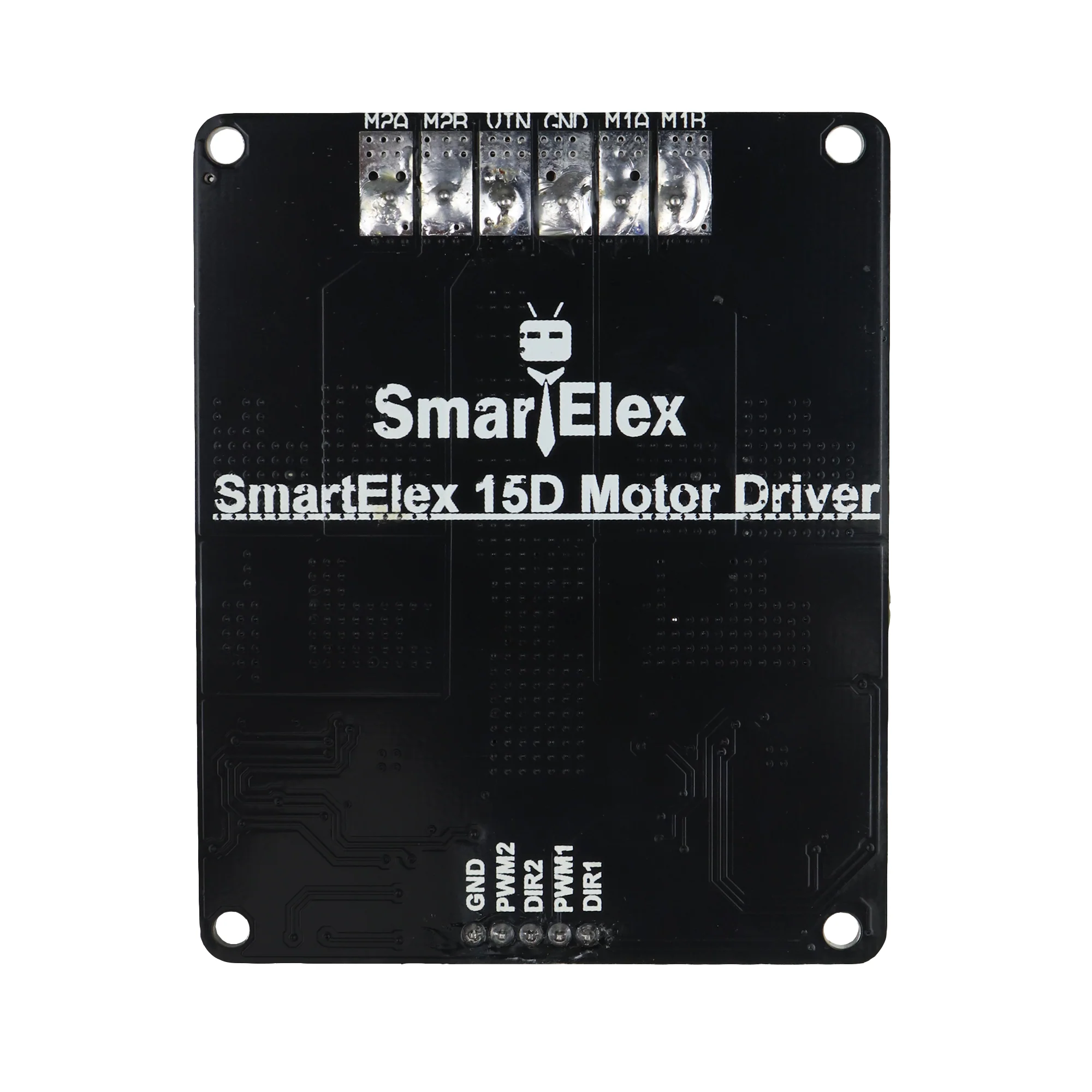

SmartElex 15D Dual Channel DC Motor Driver (30A Peak) (Dual Motor, PWM)

Smart Elex 15D 13A Continuous, 30A Peak DC Motor Driver Board for Robotics

The SmartElex 15D Dual Channel DC Motor Driver is a powerful and reliable solution for driving two brushed DC motors with ease. It supports up to 13A continuous and 30A peak current, making it suitable for high-load applications. The board is compatible with 3V and 5V logic levels and offers PWM + direction control, thermal shutdown, and overcurrent protection. Ideal for Arduino, Raspberry Pi, or other MCUs, it operates from 6.8V to 30V and includes a connection cable. Compact and efficient, it's perfect for robotics and mechatronics projects.

---

Specifications:

• Model: SmartElex 15D

• Channels: 2 (Dual Motor Control)

• Operating Voltage: 6.8V to 30V

• Continuous Current: 13A

• Peak Current: 30A (for 10 sec)

• Control Method: PWM and direction (TTL compatible)

• Protection: Overcurrent, Thermal shutdown, Undervoltage lockout

• Logic Input: 3V & 5V compatible

• Dimensions (L×W×H): 75 × 63 × 15 mm

• Weight: 30g

• Included: 1x Driver Board, 1x Connection Cable
