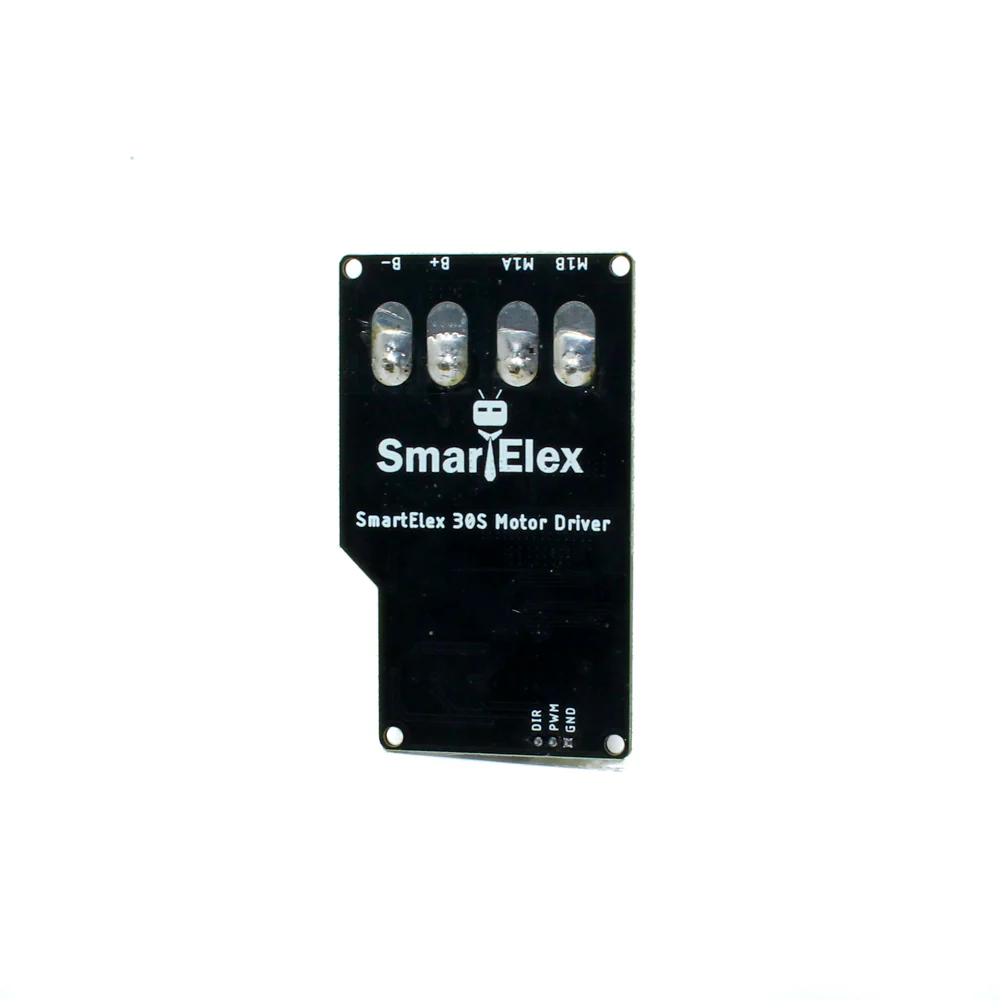

SmartElex 30S DC Motor Driver – 30A High Current Single Channel Controller

The SmartElex 30S DC Motor Driver is a high-performance, single-channel motor controller designed to handle 30A continuous and up to 85A peak current (2 sec). Suitable for bidirectional control of a brushed DC motor, it operates between 7V to 28V and supports TTL-level PWM input, making it ideal for robotics and heavy-load motor applications. Built-in overcurrent protection ensures reliable and safe operation.

Specifications:

• Model Type: Motor Driver

• No. of Channels: 1

• Continuous Current: 30A

• Peak Current: Up to 85A (2 seconds)

• Input Voltage: 7V – 28V

• PWM Frequency: 490 Hz

• Motor Type: Brushed DC (Bidirectional Control)

• Protection: Overcurrent with indication

• Dimensions (L×W×H): 82 × 50 × 17 mm

• Shipping Weight: 0.035 kg

• Shipping Dimensions: 10 × 6 × 3 cm
