SmartElex Power Meter – ACS37800

SmartElex ACS37800 Power Meter – High-Accuracy DC Voltage & Current Sensor (Up to 60VDC / ±30A)

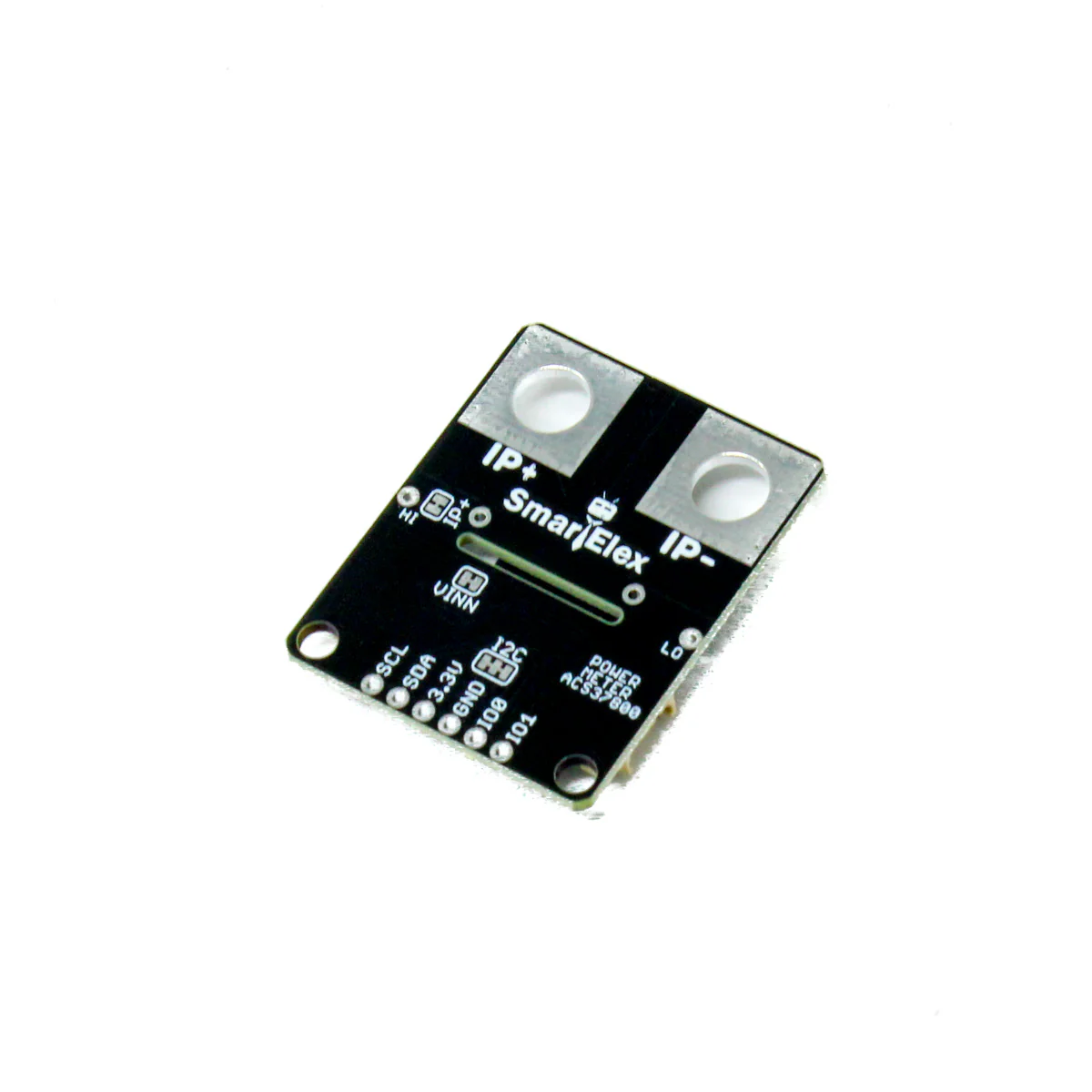

The SmartElex Power Meter featuring the Allegro ACS37800 IC is a robust, high-accuracy sensor designed for monitoring power in DC systems up to 60VDC and ±30A current. Ideal for applications like 3D printer power monitoring, UAV battery systems, solar panel monitoring, and battery charging, this sensor offers reinforced galvanic isolation using Hall-effect technology—eliminating the need for bulky or power-wasting components like shunt resistors or transformers.

The sensor communicates via I2C (default address: 0x60) and supports fast fault detection, voltage/current zero-crossing detection, and configurable safety thresholds. With a bandwidth of 1 kHz, RMS voltage noise of ±0.3mV, and RMS current noise of ±0.1A, it's suited for medium-to-high current DC applications, not low-current sensing.

Key Specifications:

• Current Sensing Range: ±30A

• Voltage Range: Up to 60VDC (SELV only)

• Bandwidth: 1 kHz

• RMS Noise (Voltage): ±0.3mV

• RMS Noise (Current): ±0.1A

• Output Error (Voltage): ±1% (-40°C to 125°C)

• Output Error (Current): ±2% (25°C to 125°C), ±2.7% (-40°C to 25°C)

• Isolation Voltage: 517 VRMS

• Resistance: 0.85 mΩ (for minimal power loss)

• Interface: I2C, address 0x60

• PCB Dimensions: 30.48mm x 38.1mm

• Mounting: Two 6mm holes for high-current terminals

• Shipping Weight: 5g

• Not suitable for AC systems or low-current applications (<1A)
