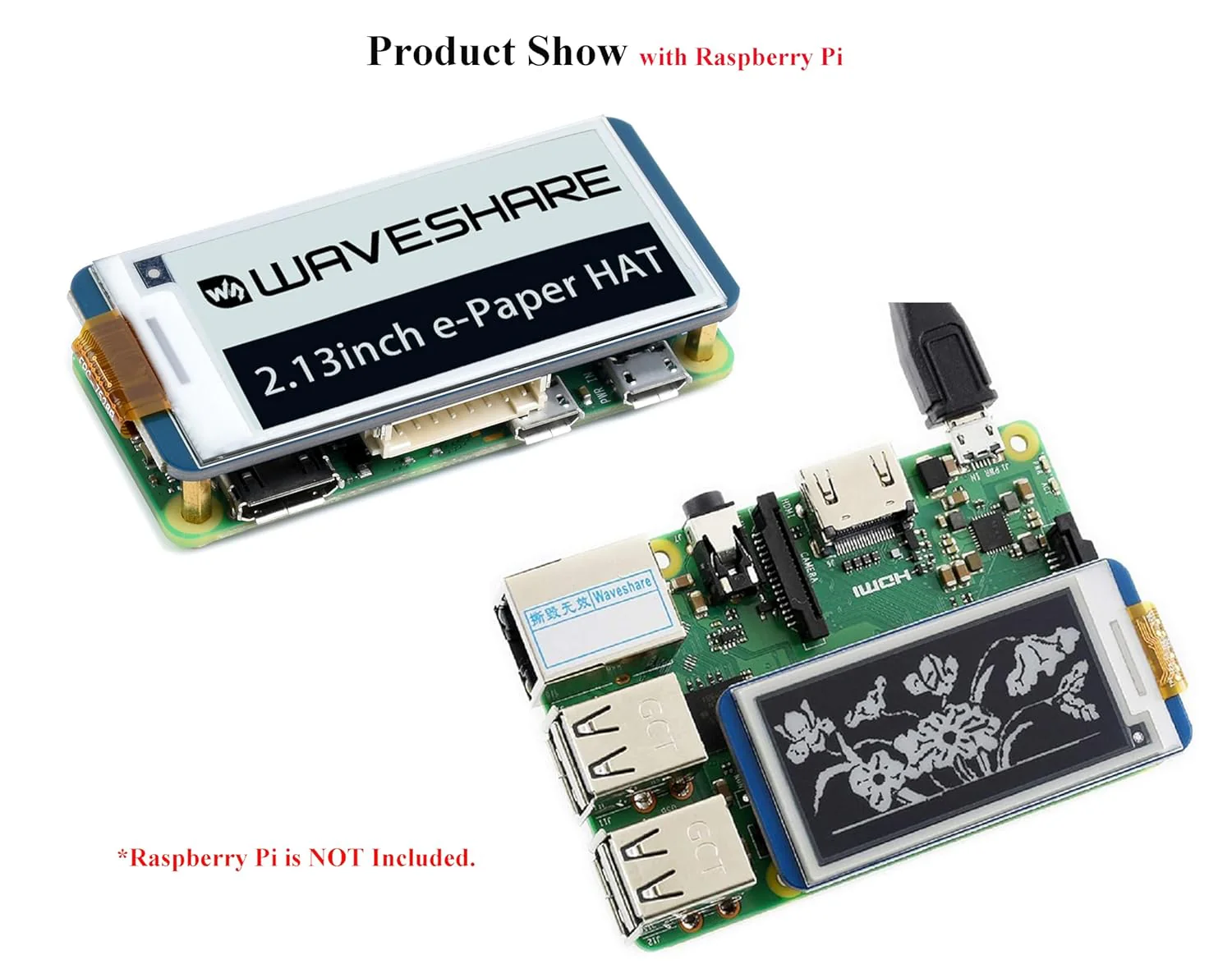

Waveshare: 12915 250x122 2.13inch E-Ink Display HAT for Raspberry Pi B&W

Black and White 2-Color 2.13-inch E-Paper E-Ink Display HAT for RPi

This is an E-Ink display HAT for Raspberry Pi, 2.13inch, 250x122 resolution, with embedded controller, communicating via SPI interface, supports partial refresh.

Due to the advantages like ultra low power consumption, wide viewing angle, clear display without electricity, it is an ideal choice for applications such as shelf label, industrial instrument, and so on.

Features

• No backlight, keeps displaying last content for a long time even when power down
• Ultra low power consumption, basically power is only required for refreshing
• Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards, Jetson Nano
• SPI interface, for connecting with other controller boards like Arduino/Nucleo, etc.
• Onboard voltage translator, compatible with 3.3V/5V MCUs
• Comes with development resources and manual (examples for Raspberry Pi/Jetson Nano/Arduino/STM32)

Dimensions

Development Resources

Wiki : www.waveshare.com/wiki/2.13inch_e-Paper_HAT

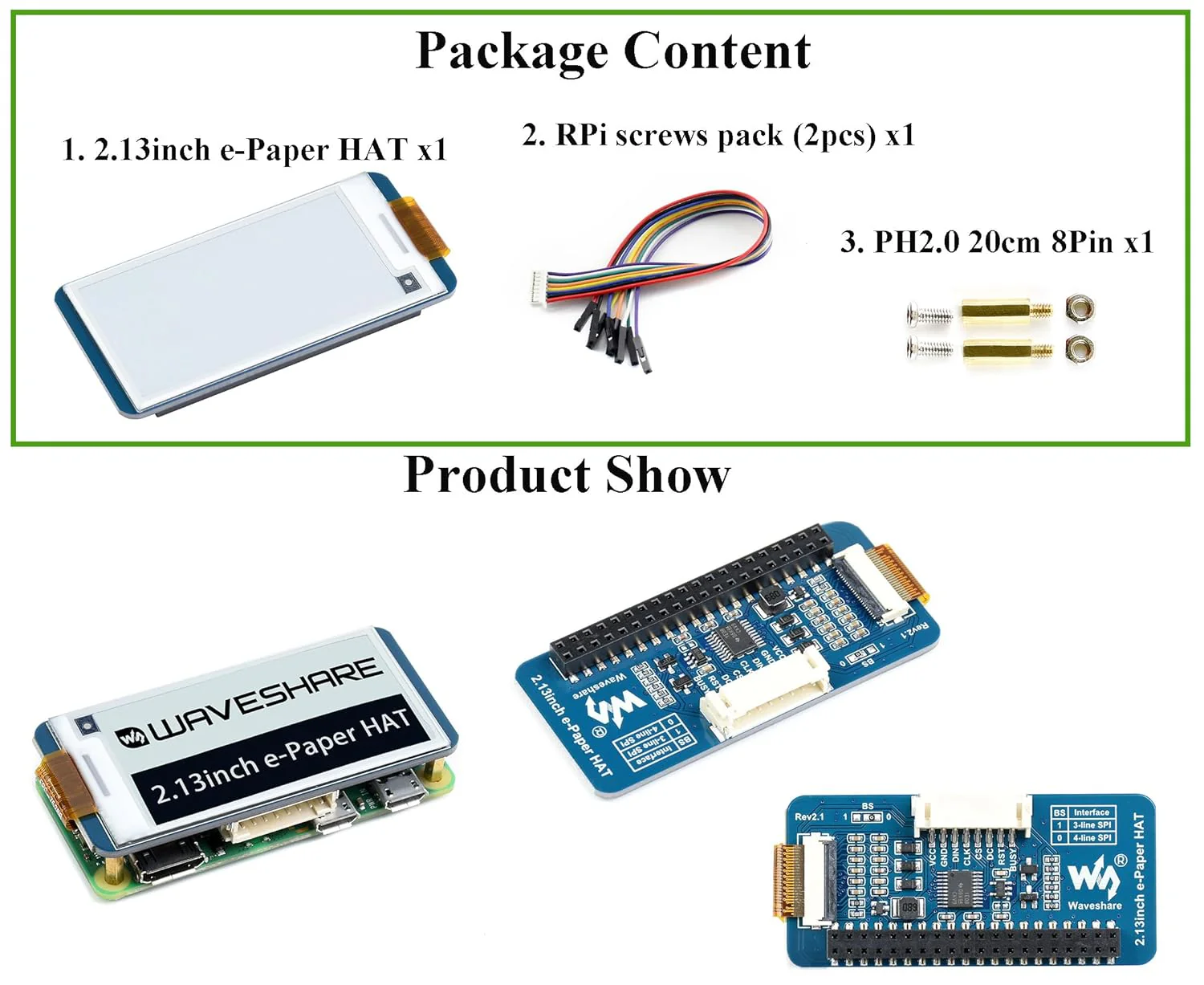

Package Content

• 2.13inch e-Paper HAT x1
• RPi screws pack (2pcs) x1
• PH2.0 20cm 8Pin x1
