Wire to Board Screw Terminal Block Connectors TBC 5.0-Pitch

Modular PCB Terminal Blocks – 5.0mm Pitch Wire Connectors

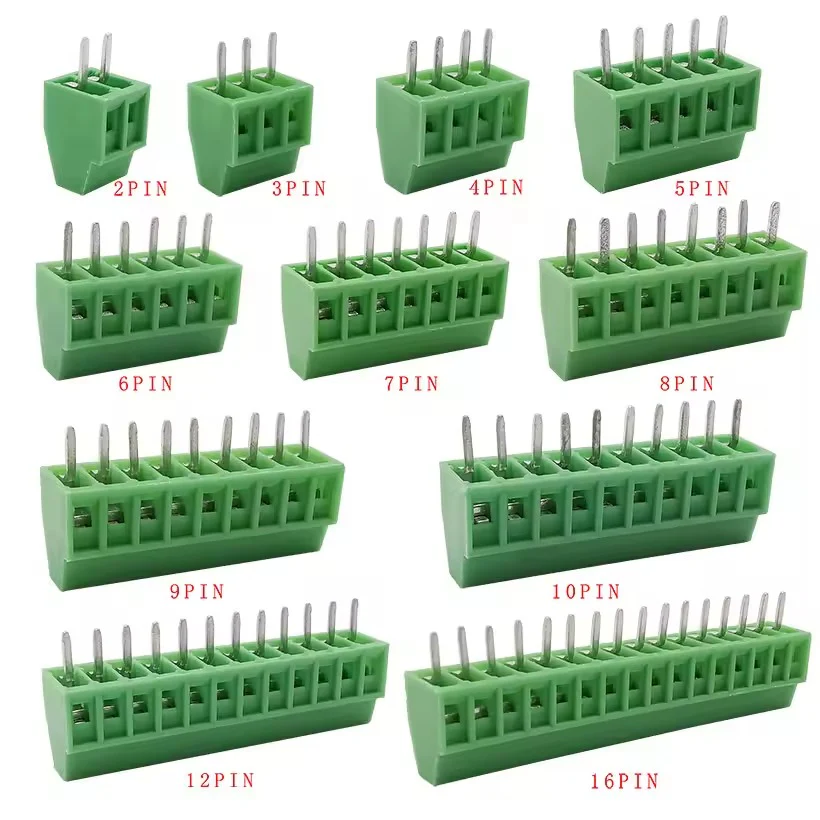

These modular Screw Terminal Block Connectors offer a secure and flexible solution for wire-to-PCB connections. Suitable for 2-pin or 3-pin configurations and extendable into longer strips, they feature 5.0mm pitch, 90-Degree-entry or 45-Degree entry, and are compatible with 24–14 AWG wires. Ideal for power connections, DIY electronics, and PCB prototyping.

Specifications:

• Pins: 2 or 3 (expandable to 6, 9, 12, etc.)

• Pitch (Spacing): 5.0mm

• Voltage Rating: 125V – 130V

• Current Rating: 10A

• Wire Gauge: 24–14 AWG (up to 2.5mm²)

• Contact Resistance: 20 mΩ

• Wire Strip Length: 5 mm

• Terminal Type: Screw

• Entry Type: Side-entry / 45-degree angle

• Mount Type: PCB mountable

• Modularity: Interlock to form longer connectors
