XL4015 5A DC-DC Step Down Adjustable Power Supply Buck Module

XL 4015 5A DC-DC Step Down Adjustable Power Supply Buck Converter

The XL4015 5A DC-DC Step Down Adjustable Power Supply Buck Converter is a versatile electronic component commonly used in DIY electronics projects and power management systems.

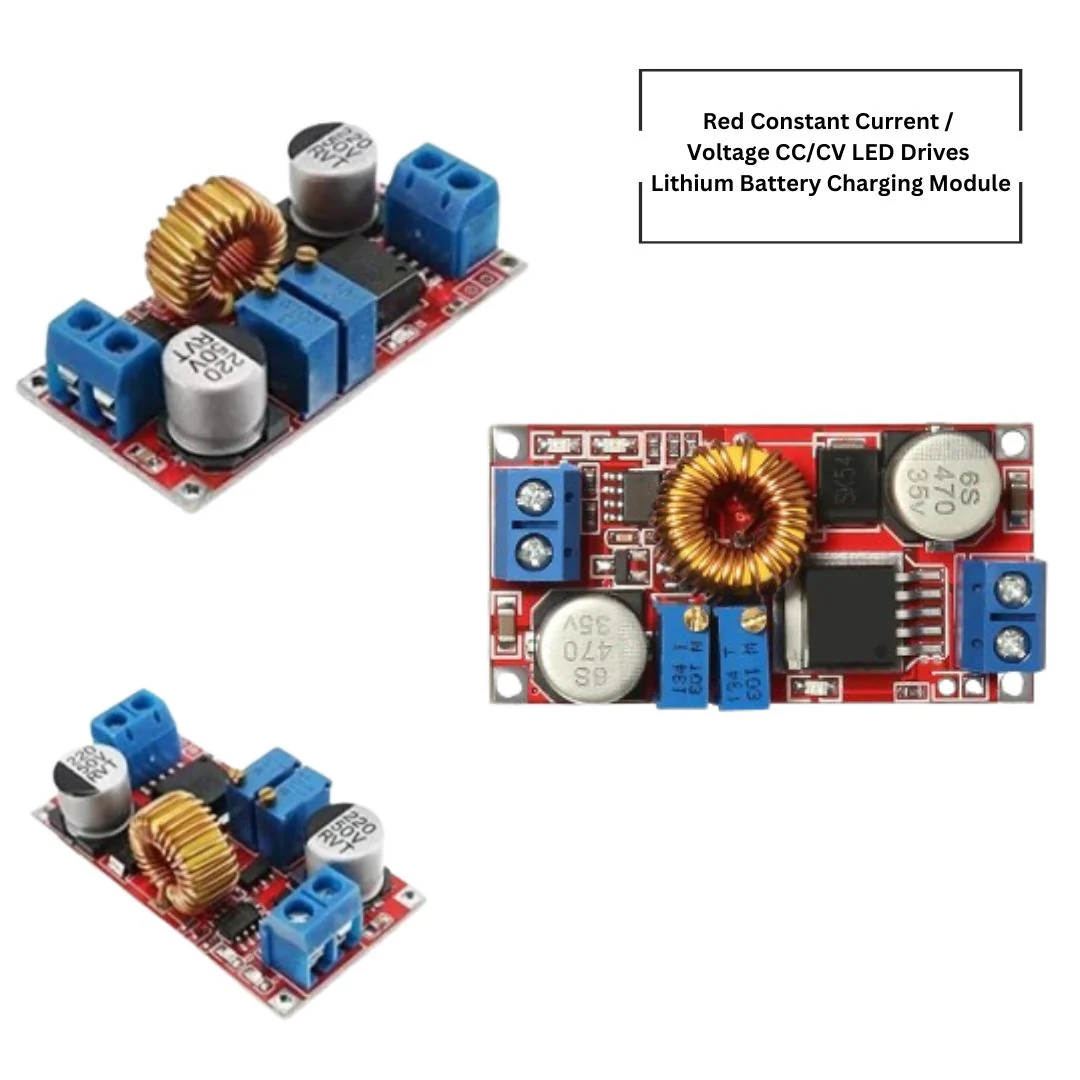

A. Red Constant Current / Voltage CC/CV LED Drives Lithium Battery Charging Module

1. Adjustable Output Current: The converter allows you to adjust the output current, with a maximum capability of up to 5A. This flexibility enables you to customize the power delivery according to your specific requirements.

2. High Output Power: With a maximum output power of up to 75W, this converter can efficiently handle power-hungry devices and circuits, making it suitable for a wide range of applications.

3. Wide Operating Temperature Range: The converter can operate reliably in a broad temperature range from -40 to +85 degrees Celsius, making it suitable for use in various environmental conditions and applications.

4. High Working Frequency: Operating at a frequency of 180KHz, the converter offers fast response times and efficient power conversion, ensuring stable and reliable performance.

5. High Conversion Efficiency: With a conversion efficiency of up to 96%, the converter minimizes power loss during the voltage conversion process, resulting in less heat generation and maximizing battery life in battery-powered applications.

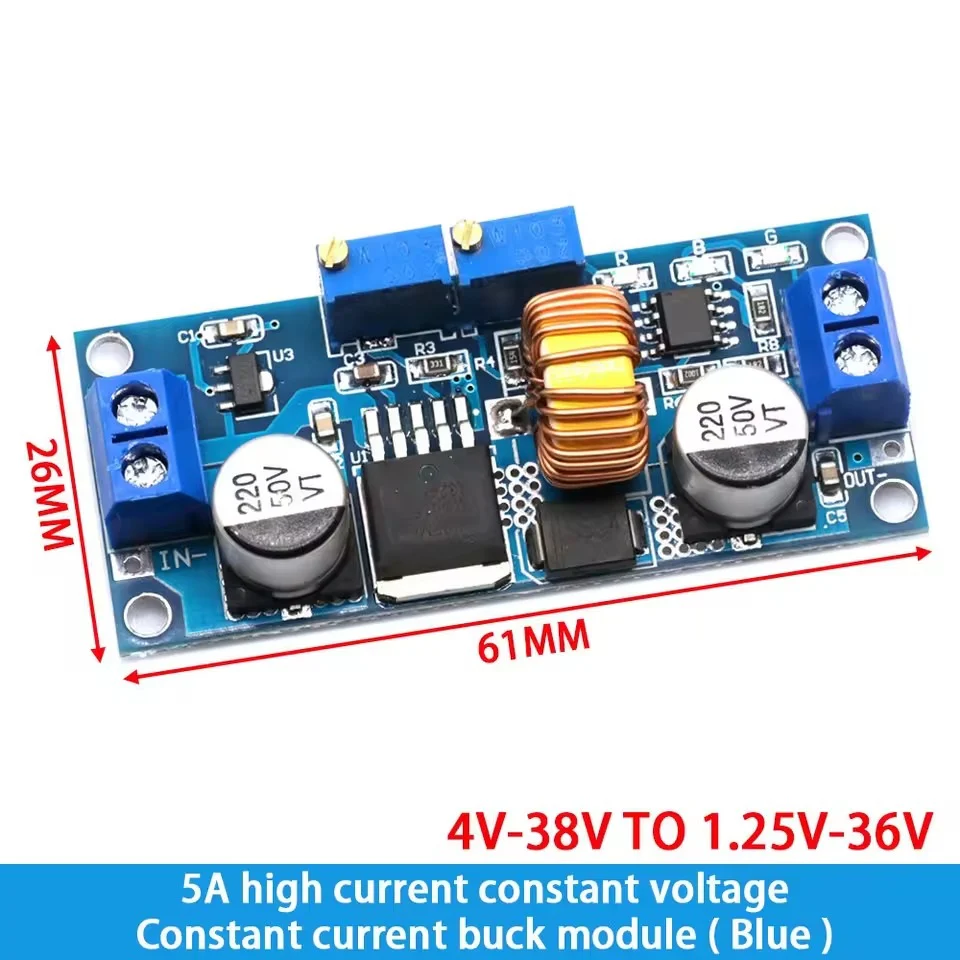

B. 5A Step Down Adjustable Power Supply Module With HEAT SINK

1. Input Voltage: Ranges from 4V to 38V, allowing flexibility in the power source selection and compatibility with various input voltage levels.

2. Output Voltage: Adjustable output voltage ranging from 1.25V to 36V, enabling precise control over the voltage supplied to the load.

3. Max. Output Current: The converter supports output currents ranging from 0A to 5A, providing sufficient power delivery for different applications and loads.

4. Output Power: With a maximum output power of 75W, the converter can efficiently handle power-hungry devices and circuits, ensuring reliable operation.

C. 5A Step Down Adjustable Power Supply with LED Voltmeter

1. Input Voltage: Accepts input voltages from 5V to 38V DC, providing flexibility in the choice of power sources.

2. Output Voltage: Adjustable output voltage ranging from 1.25V to 36V, allowing precise voltage regulation for different applications.

3. Output Current: Supports a maximum output current of 5A, providing ample power for various loads.

4. Output Power: Capable of delivering up to 75W of power, making it suitable for powering a wide range of electronic devices and circuits.

5. Voltmeter Error: The voltmeter accuracy is within ±0.05V, ensuring accurate voltage measurement.

6. Conversion Efficiency: Achieves a high conversion efficiency of up to 96%, minimizing power loss and maximizing energy efficiency.

7. Load Regulation: Load regulation (S (I)) is less than or equal to 0.8%, ensuring stable output voltage under varying load conditions.

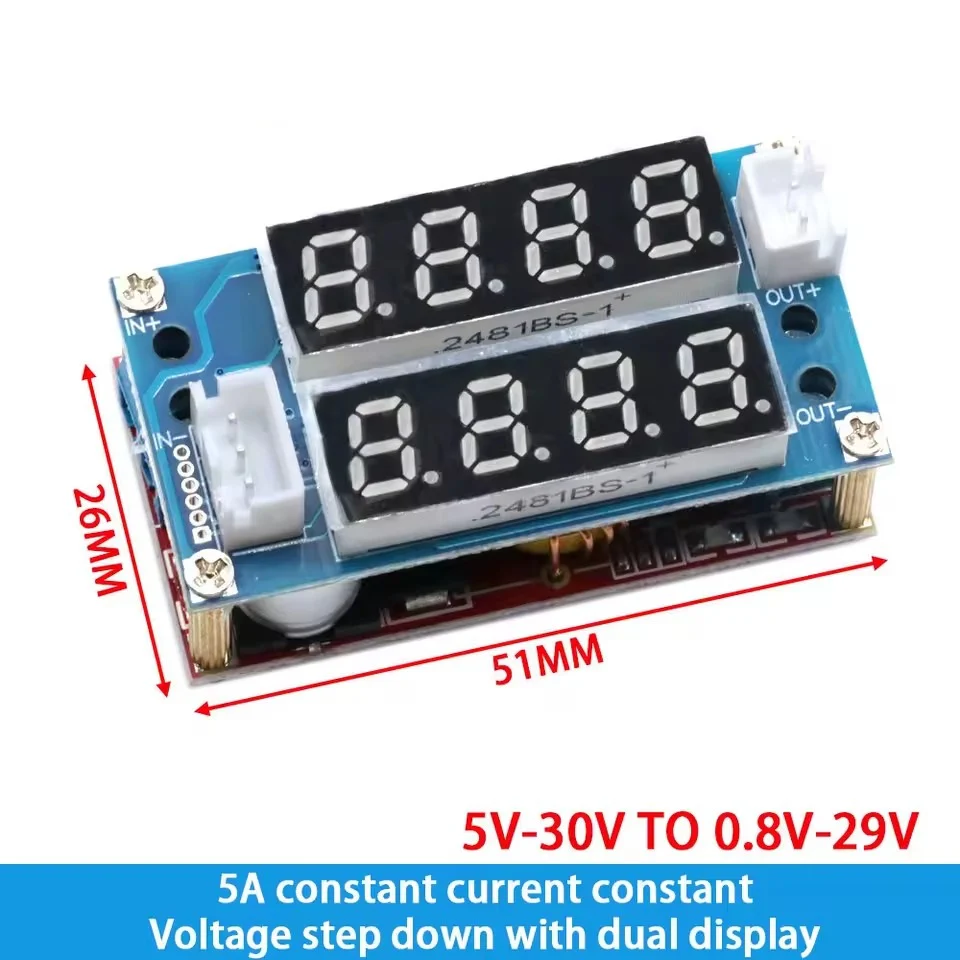

D. Variable Voltage Current Step Down Power Module with DUAL LED Display

1. Input Voltage: Supports input voltages ranging from 5V to 30V, allowing for a wide range of power sources.

2. Output Voltage: Provides an adjustable output voltage range from 0.8V to 29V, enabling precise voltage regulation for various applications.

3. Output Current: Offers a maximum output current of 3A without air cooling and up to 5A with forced air cooling, ensuring sufficient power delivery for different loads.

4. Conversion Efficiency: Achieves a high conversion efficiency of up to 95%, minimizing power loss and maximizing energy efficiency.

5. Switching Frequency: Operates at a switching frequency of 300KHz, facilitating fast response times and efficient power conversion.

6. Input Impedance: Exhibits an input impedance of 50 milliohms, contributing to efficient power transfer and stability.

7. Output Ripple: The maximum output ripple is 50mV with a bandwidth of 20M, ensuring low noise and stable output voltage.

8. Load Regulation: Provides load regulation within ±0.5%, ensuring stable output voltage under varying load conditions.

9. Voltage Regulation: Maintains voltage regulation within ±2.5%, ensuring consistent output voltage across different operating conditions.

10. Operating Temperature: Suitable for a wide temperature range from -40 ℃ to +85 ℃, making it suitable for various environmental conditions and applications.
