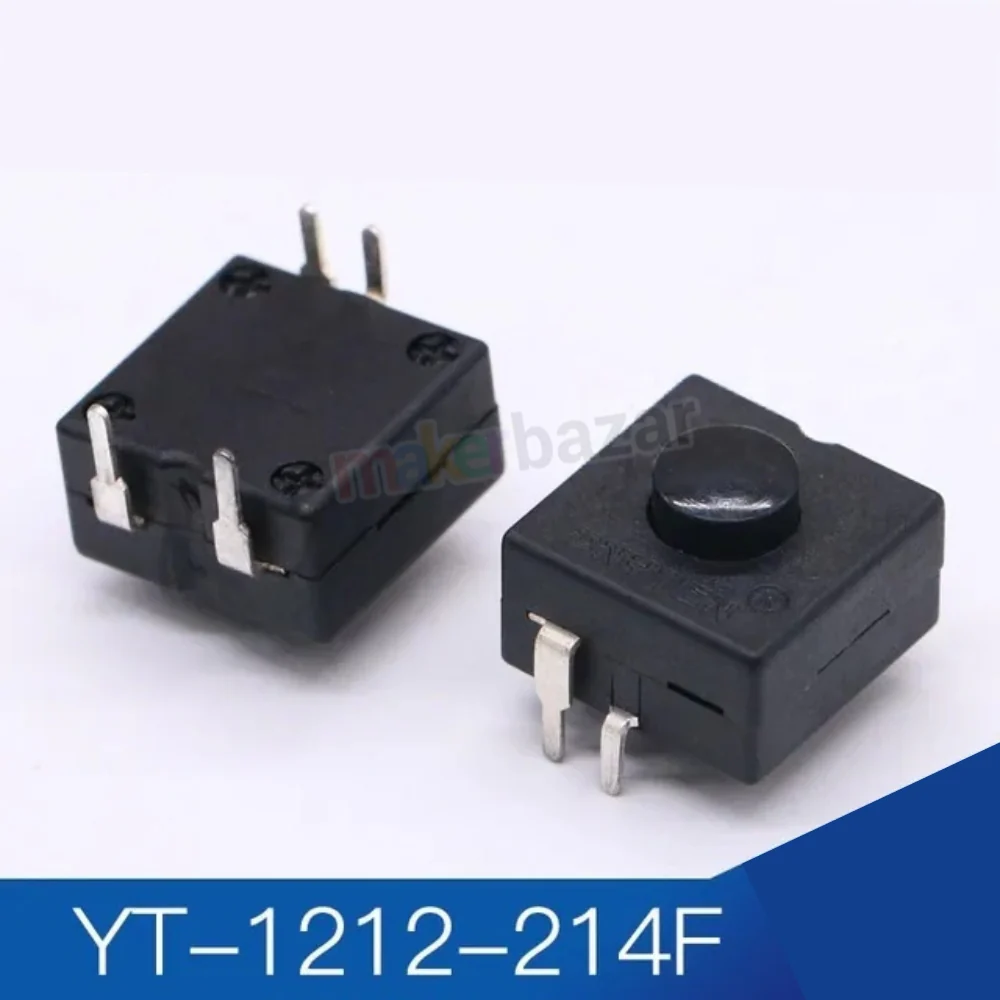

YT-1212 Flashlight Torch Switch Self-Lock Button 12x12mm

YT-1212 Multi-Length Flashlight Lamp Switch – Plug & Play Button Control

The YT-1212 series push button switches are compact and reliable electronic switches designed for a variety of applications, including LED lighting, DIY electronics, and embedded systems. These 12×12mm tactile switches come in multiple variants offering different actuator shapes, heights, and pin layouts to suit a wide range of design requirements. RoHS certified and manufactured with durable materials, they ensure consistent performance, long life, and ease of installation for both hobbyist and industrial use.

---

Specifications:

• Series: YT-1212 / YT-CB1212

• Switch Type: Tactile Push Button

• Switch Size: 12mm × 12mm

• Mounting Type: Through-hole / PCB Mount

• Actuator Type: Varies by model (round, flat, high, etc.)

• Operating Force: ~180gF (may vary by variant)

• Contact Resistance: ≤ 100mΩ

• Insulation Resistance: ≥ 100MΩ at 500V DC

• Dielectric Strength: 250V AC for 1 minute

• Life Span: Up to 100,000 cycles

• Applications: Flashlight control, LED modules, electronic projects, consumer electronics, embedded systems
