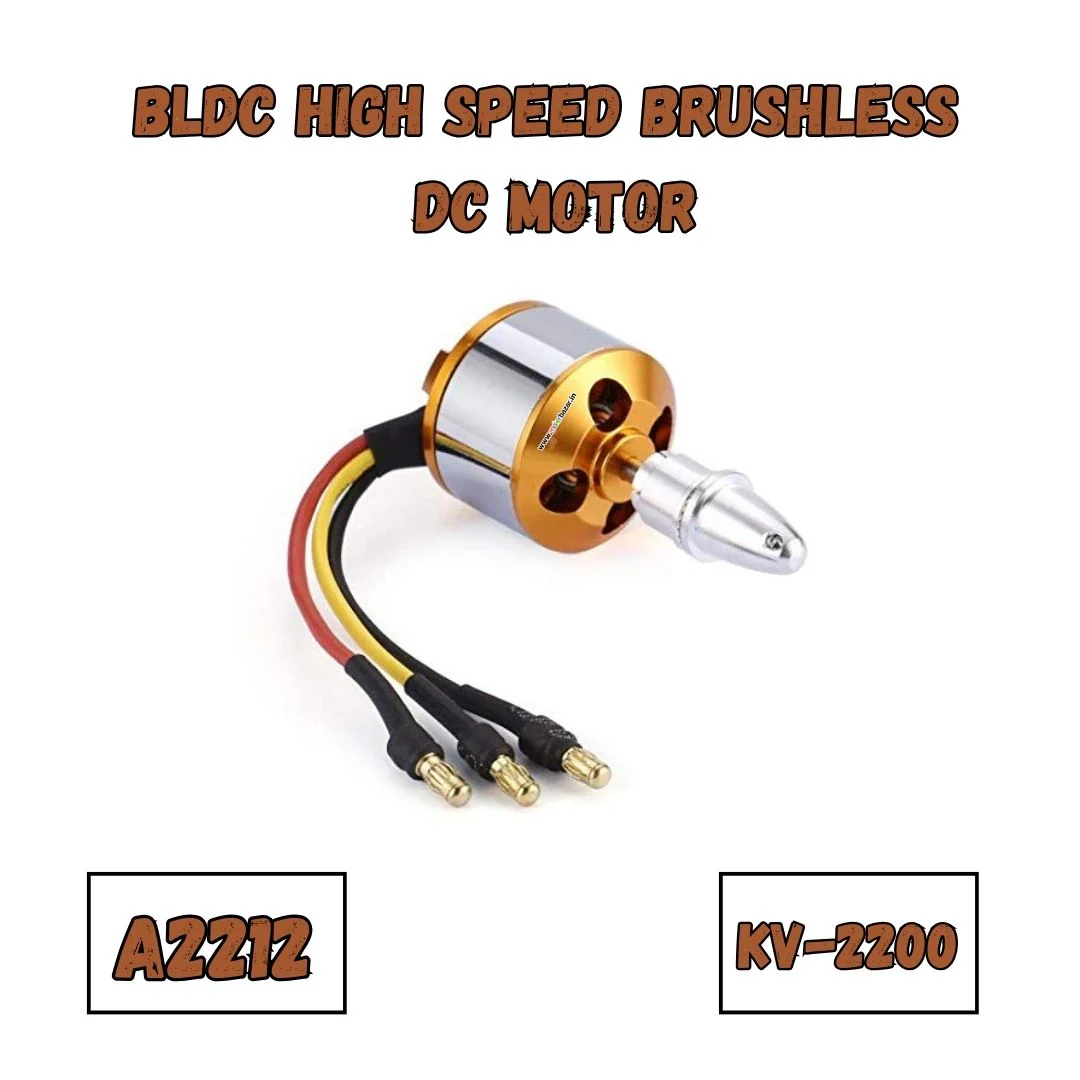

A2212 BLDC Brushless DC Motor for Drone

This A2212 brushless outrunner DC motor is specifically designed to power quadcopters and multirotors, delivering high performance, exceptional power, and remarkable efficiency. It's an ideal choice for medium-sized quadcopters with 8-inch to 10-inch propellers, ensuring powerful and efficient flight performance.

Perfectly compatible with the F450 quadcopter frame, this motor can be driven by our 30A ESCs for optimal results.

Specifications:

• No Load Current @ 10V: 0.5A
• Current Capacity: 12A/60s
• No. of Cells: 2-3 Li-Poly
• Motor Dimensions: 27.5 x 30mm
• Shaft Diameter: 3.175mm
• Minimum ESC Specification: 18A (30A Suggested)
• Thrust @ 3S with 1045 propeller: 1000g approx
• Thrust @ 3S with 0945 propeller: 650g approx
• Thrust @ 3S with 0845 propeller: 550g approx

Product Include:

1x A2212 High Speed Brushless DC Motor BLDC
