M7 - 1N4007 SMD 1A 1000V Diode SMA DO-214AC Package
1N 4007 Surface Mount SMT SMD Diode M7
The M7 (1N4007) Diode is a Surface Mount General Rectifier and has a Plastic Passivation Junction Reverse Voltage of 50 to 1000 Volts with Forward Current of 1.0 Ampere.Ā
Features

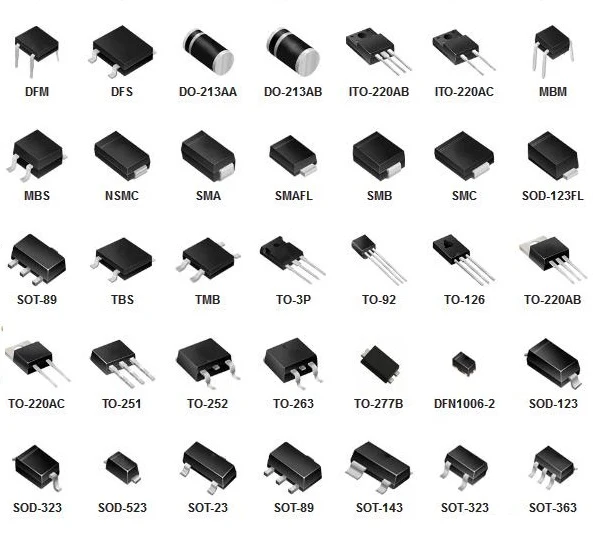

- Case: DO-214AC molded plastic body
- Terminals Solder plated per MIL-STD-7SO, Method
- Polarity: Color band denotes cathode end
SPECIFICATION
| Peak Repetitive Reverse Voltage (VRRM) | 1000V |
| Maximum RMS Voltage (VRMS) | 700V |
| Maximum DC Blocking Voltage (VDC) | 1000V |
| Maximum Average Forward Rectified Current (IFAV) | 1A |
| Non-Repetitive Peak Forward Surge Current (IFSM) | 30A |
| Operating Junction Temperature Range (TJ) | ā 65Ā°C to +175Ā°C |
| Storage Temperature Range (Tstg) | ā 65Ā°C to +175Ā°C |
Select Quantity
From $0.06
Original: $0.21
-71%M7 - 1N4007 SMD 1A 1000V Diode SMA DO-214AC Packageā
$0.21
$0.06Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
1N 4007 Surface Mount SMT SMD Diode M7
The M7 (1N4007) Diode is a Surface Mount General Rectifier and has a Plastic Passivation Junction Reverse Voltage of 50 to 1000 Volts with Forward Current of 1.0 Ampere.Ā
Features
- Case: DO-214AC molded plastic body
- Terminals Solder plated per MIL-STD-7SO, Method
- Polarity: Color band denotes cathode end
SPECIFICATION
| Peak Repetitive Reverse Voltage (VRRM) | 1000V |
| Maximum RMS Voltage (VRMS) | 700V |
| Maximum DC Blocking Voltage (VDC) | 1000V |
| Maximum Average Forward Rectified Current (IFAV) | 1A |
| Non-Repetitive Peak Forward Surge Current (IFSM) | 30A |
| Operating Junction Temperature Range (TJ) | ā 65Ā°C to +175Ā°C |
| Storage Temperature Range (Tstg) | ā 65Ā°C to +175Ā°C |
